Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-VFG220MCFIXED IND 22UH 430MA 710MOHM SMD |
1,166 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 430 mA | 350mA | Shielded | 710mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
ELL-VGG3R3NFIXED IND 3.3UH 1.1A 130MOHM SMD |
3,876 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.1 A | 1.35A | Shielded | 130mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

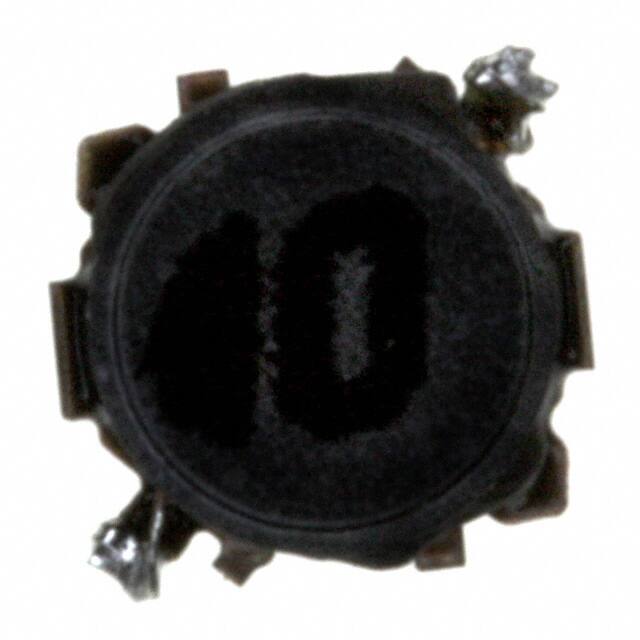

ELL-VGG150MFIXED IND 15UH 490MA 640MOHM SMD |
2,883 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 490 mA | 600mA | Shielded | 640mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

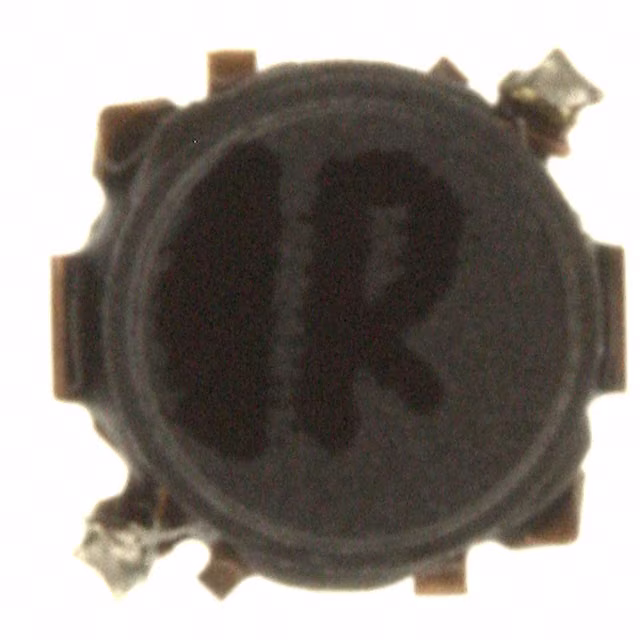

ELL-VGG220MFIXED IND 22UH 460MA 800MOHM SMD |
1,788 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 460 mA | 500mA | Shielded | 800mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

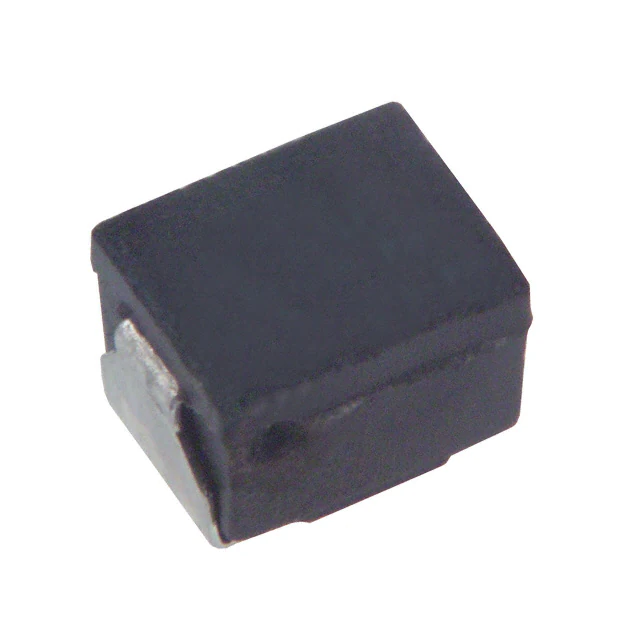

ELJ-FA390JFDFIXED IND 39UH 105MA 6 OHM SMD |
4,356 |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±5% | 105 mA | - | Unshielded | 6Ohm Max | 30 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FA680JFDFIXED IND 68UH 85MA 9 OHM SMD |
1,004 |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±5% | 85 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FA820JFDFIXED IND 82UH 75MA 12 OHM SMD |
2,952 |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 75 mA | - | Unshielded | 12Ohm Max | 30 @ 2.52MHz | 10MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-PA2R2MF2FIXED IND 2.2UH 800MA 170MOHM SM |
4,333 |
|
Datasheet | PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.2 µH | ±20% | 800 mA | 800mA | Unshielded | 170mOhm | - | 70MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA4R7MF2FIXED IND 4.7UH 700MA 230MOHM SM |
4,569 |
|
Datasheet | PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.7 µH | ±20% | 700 mA | 580mA | Unshielded | 230mOhm | - | 35MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA220KF2FIXED IND 22UH 420MA 660MOHM SMD |
4,846 |
|
Datasheet | PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 22 µH | ±10% | 420 mA | 290mA | Unshielded | 660mOhm | - | 15MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
