Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6PM330MFIXED IND 33UH 550MA 290MOHM SMD |
1,455 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 550 mA | - | Shielded | 290mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM470MFIXED IND 47UH 440MA 360MOHM SMD |
4,575 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 440 mA | - | Shielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM820MFIXED IND 82UH 360MA 680MOHM SMD |
1,508 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 360 mA | - | Shielded | 680mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PM101MFIXED IND 100UH 320MA 970MOHM SM |
4,815 |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 320 mA | - | Shielded | 970mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|

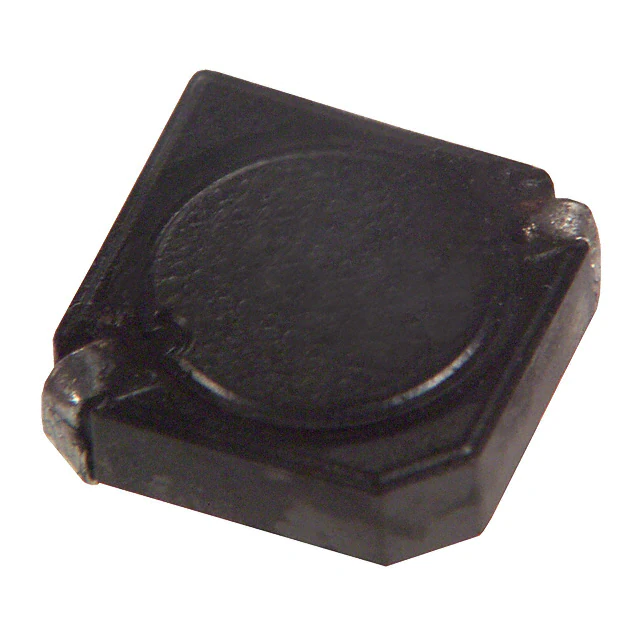

ELL-6PV4R7NFIXED IND 4.7UH 1.7A 44 MOHM SMD |
2,551 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.7 A | - | Shielded | 44mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PV6R8NFIXED IND 6.8UH 1.25A 55MOHM SMD |
1,309 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.25 A | - | Shielded | 55mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PV100MFIXED IND 10UH 1A 85 MOHM SMD |
1,896 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 85mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ELL-6PV101MFIXED IND 100UH 340MA 750MOHM SM |
4,552 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 340 mA | - | Shielded | 750mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
ELL-ATV2R2NFIXED IND 2.2UH 6.2A 6.3MOHM SMD |
4,075 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.2 A | - | Shielded | 6.3mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV3R3NFIXED IND 3.3UH 5.35A 8.8MOHM SM |
1,717 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.35 A | - | Shielded | 8.8mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
