Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-FAR27MF2FIXED IND 270NH 345MA 320MOHM SM |
4,671 |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 nH | ±20% | 345 mA | - | Unshielded | 320mOhm Max | 25 @ 25.2MHz | 210MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-FC4R7KFFIXED IND 4.7UH 125MA 1.55OHM SM |
3,997 |
|
Datasheet | FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±10% | 125 mA | - | Unshielded | 1.55Ohm Max | 25 @ 7.96MHz | 55MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FAR56MF2FIXED IND 560NH 275MA 490MOHM SM |
4,973 |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 nH | ±20% | 275 mA | - | Unshielded | 490mOhm Max | 25 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FC120KFFIXED IND 12UH 75MA 4.1 OHM SMD |
3,876 |
|
Datasheet | FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±10% | 75 mA | - | Unshielded | 4.1Ohm Max | 25 @ 2.52MHz | 30MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC8R2KFFIXED IND 8.2UH 105MA 2.2OHM SMD |
3,458 |
|
Datasheet | FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±10% | 105 mA | - | Unshielded | 2.2Ohm Max | 25 @ 7.96MHz | 40MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

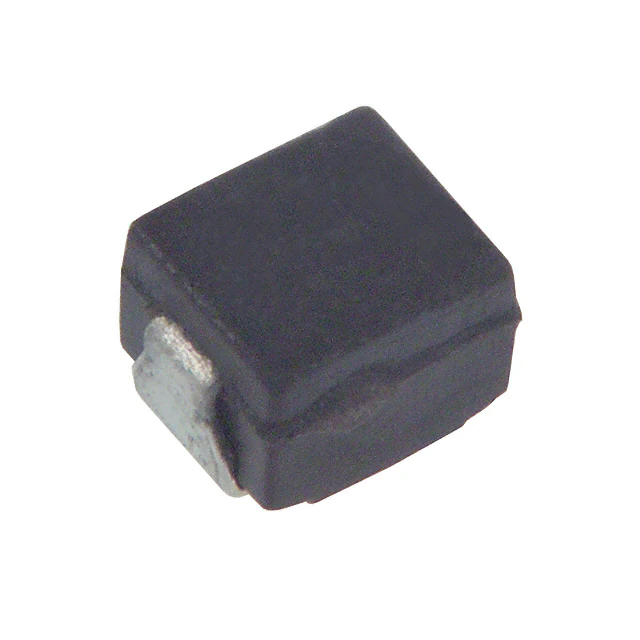

ELJ-SC101KFFIXED IND 100UH 10MA 8.4 OHM SMD |
4,664 |
|
Datasheet | SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 100 µH | ±10% | 10 mA | - | Shielded | 8.4Ohm Max | 25 @ 796kHz | 12MHz | - | - | 796 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC820KFFIXED IND 82UH 14MA 7.4 OHM SMD |
3,946 |
|
Datasheet | SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±10% | 14 mA | - | Shielded | 7.4Ohm Max | 25 @ 2.52MHz | 13MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC330KFFIXED IND 33UH 14MA 5.2 OHM SMD |
4,738 |
|
Datasheet | SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±10% | 14 mA | - | Shielded | 5.2Ohm Max | 40 @ 2.52MHz | 18MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC560KFFIXED IND 56UH 10MA 7.1 OHM SMD |
2,854 |
|
Datasheet | SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 56 µH | ±10% | 10 mA | - | Shielded | 7.1Ohm Max | 40 @ 2.52MHz | 13MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC470KFFIXED IND 47UH 12MA 6.6 OHM SMD |
3,056 |
|
Datasheet | SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±10% | 12 mA | - | Shielded | 6.6Ohm Max | 40 @ 2.52MHz | 14MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
