Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437336022FIXED IND 2.2UH 4.9A 0.035OHM SM |
6,263 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 4.9 A | 14A | Shielded | 35mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
744316330FIXED IND 3.3UH 5.75A 18.5 MOHM |
3,084 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.75 A | 5.8A | Shielded | 18.5mOhm | - | 66MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316150FIXED IND 1.5UH 9A 8.15 MOHM SMD |
2,774 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 9 A | 9A | Shielded | 8.15mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
74437336010FIXED IND 1UH 7.3A 0.014OHM SMD |
2,150 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 7.3 A | 14.2A | Shielded | 14mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
744316560FIXED IND 5.6UH 4.5A 28.5MOHM SM |
565 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 4.5 A | 4.6A | Shielded | 28.5mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316022FIXED IND 220NH 20A 1.25MOHM SMD |
174 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 20 A | 25A | Shielded | 1.25mOhm | - | 507MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
7687714102FIXED IND 1MH 400MA 3.2 OHM SMD |
164 |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 400 mA | 550mA | Shielded | 3.2Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|

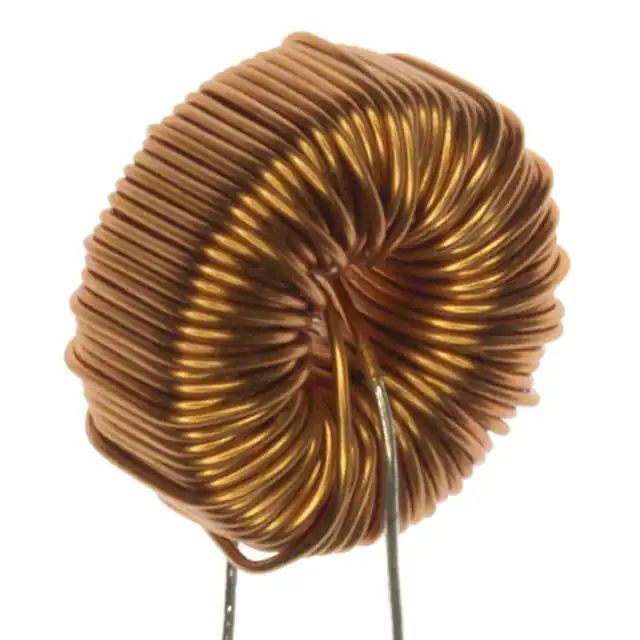

7447010FIXED IND 470UH 1A 225 MOHM TH |
587 |
|
Datasheet | WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 470 µH | ±20% | 1.6 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|

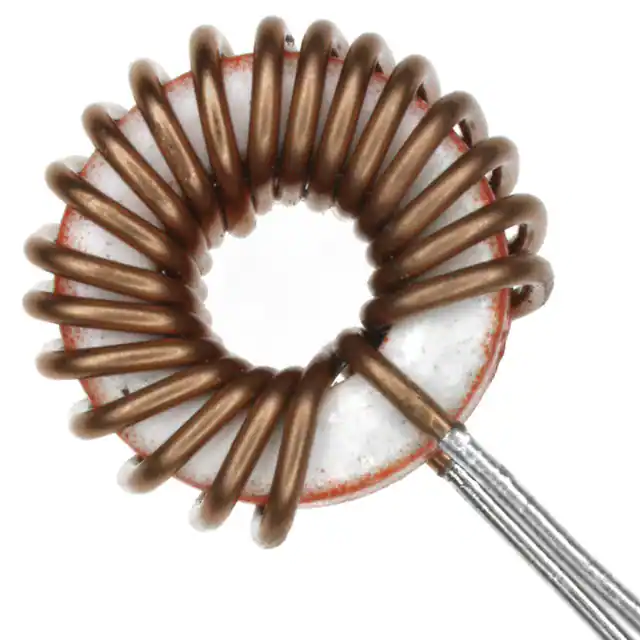

7447017FIXED IND 22UH 5A 15 MOHM TH |
279 |
|
Datasheet | WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 22 µH | ±20% | 5 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | - |
|
74439344012FIXED IND 1.2UH 10.3A 6.4MOHM SM |
943 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.2 µH | ±20% | 10.3 A | 26A | Shielded | 6.4mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
