Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
701014330FIXED IND 3.3UH 35A 1.1 MOHM SMD |
3,273 |
|
Datasheet | WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±15% | 35 A | 40A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014470FIXED IND 4.7UH 35A 1.1 MOHM SMD |
3,760 |
|
Datasheet | WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±15% | 35 A | 30A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014680FIXED IND 6.8UH 35A 1.1 MOHM SMD |
3,984 |
|
Datasheet | WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±15% | 35 A | 20A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
7444211415150FIXED IND 15UH 5.8A 14.6MOHM TH |
4,099 |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 5.8 A | 9.5A | Unshielded | 14.6mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|
78436432100FIXED IND 10UH 38A 1.1 MOHM SMD |
1,589 |
|
Datasheet | WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 10 µH | ±15% | 38 A | 14A | Shielded | 1.1mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|

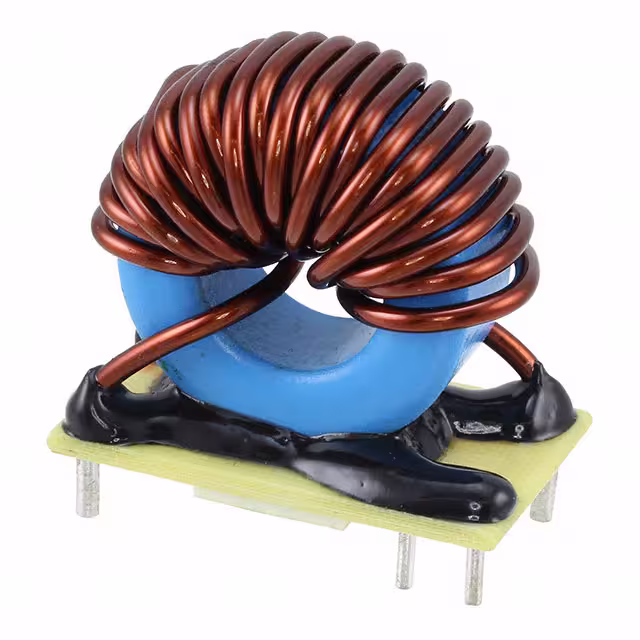

S14100036FIXED IND 56UH 17A 8.5 MOHM TH |
3,889 |
|
Datasheet | WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 17 A | - | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.906" W (36.00mm x 23.00mm) | 1.378" (35.00mm) |
|

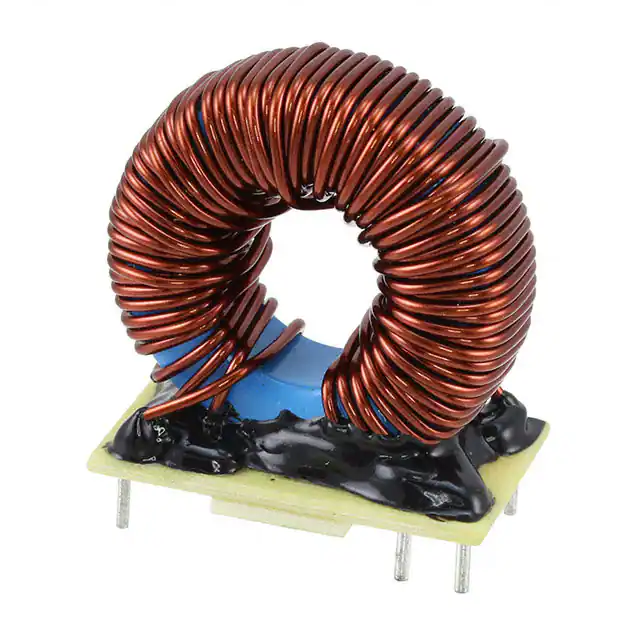

S14100035FIXED IND 307UH 7A 65 MOHM TH |
3,037 |
|
Datasheet | WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 307 µH | ±20% | 7 A | - | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.772" L x 0.906" W (45.00mm x 23.00mm) | 1.654" (42.00mm) |
|
744028100FIXED IND 10UH 600MA 670MOHM SMD |
1,877 |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 600 mA | 450mA | Shielded | 670mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
|
744028150FIXED IND 15UH 450MA 830MOHM SMD |
3,437 |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 450 mA | 350mA | Shielded | 830mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
|
744028220FIXED IND 22UH 350MA 1.48OHM SMD |
1,626 |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 350 mA | 270mA | Shielded | 1.48Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
