Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74431435012FIXED IND 120NH 31A 0.00028OHM |
2,026 |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 31 A | 71.3A | Shielded | 0.28mOhm | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|
|
74431435018FIXED IND 180NH 31A 0.00028OHM |
3,231 |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±20% | 31 A | 58.4A | Shielded | 0.28mOhm | - | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|
74431323016FIXED IND 160NH 26A 0.0007OHM SM |
1,818 |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±15% | 26 A | 35.1A | Shielded | 0.7mOhm | - | 113MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
|
74431323012FIXED IND 120NH 26A 0.0007OHM SM |
2,962 |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±15% | 26 A | 47.8A | Shielded | 0.7mOhm | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
7843340033FIXED IND 330NH 21A 2.1MOHM SMD |
3,602 |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 21 A | 36A | Shielded | 2.1mOhm Max | - | 196MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
7843340047FIXED IND 470NH 19A 2.8MOHM SMD |
1,454 |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 19 A | 29.7A | Shielded | 2.8mOhm Max | - | 146MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
831751500FIXED IND 1.5UH 20A 4.1 MOHM SMD |
2,290 |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±10% | 20 A | 45A | Shielded | 4.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - |
|

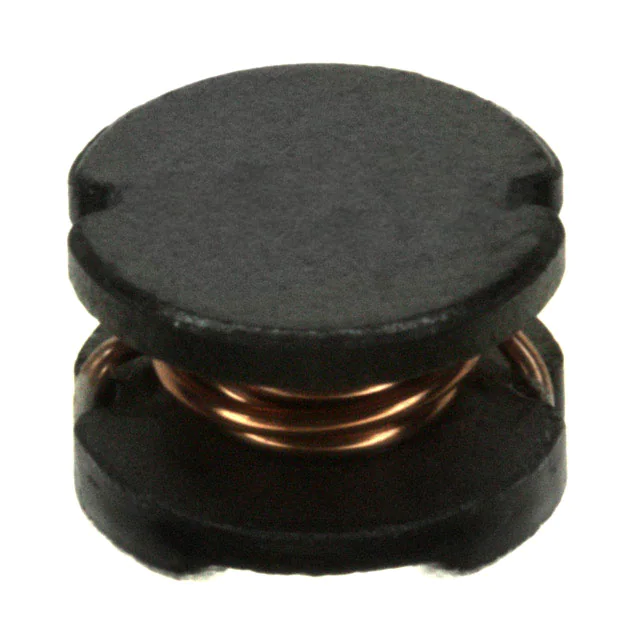

784775022FIXED IND 2.2UH 6A 10 MOHM SMD |
2,464 |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6 A | 6A | Unshielded | 10mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775033FIXED IND 3.3UH 4.9A 14 MOHM SMD |
1,329 |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.9 A | 4.9A | Unshielded | 14mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
750341595FIXED IND 700UH 1.329 OHM TH |
3,068 |
|
Datasheet | MID-DC16US | Radial, Vertical, 4 Leads | Tray | Active | - | - | 700 µH | ±5% | - | - | - | 1.329Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.580" W (14.73mm x 14.73mm) | 0.600" (15.24mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
