Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74479977147FIXED IND 470NH 2.2A 65 MOHM SMD |
4,328 |
|
Datasheet | WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 2.2 A | 2.4A | Shielded | 65mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|
7447720332FIXED IND 3.3MH 240MA 6.7 OHM TH |
2,396 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 240 mA | 290mA | Unshielded | 6.7Ohm Max | - | 980kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
7447732015FIXED IND 1.5UH 2.08A 70MOHM SMD |
4,122 |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 2.08 A | 3.05A | Unshielded | 70mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
7447732033FIXED IND 3.3UH 1.39A 120MOHM SM |
4,701 |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 1.39 A | 2.09A | Unshielded | 120mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
7447732210FIXED IND 100UH 240MA 2.8OHM SMD |
2,139 |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 240 mA | 410mA | Unshielded | 2.8Ohm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
.jpg "74479787147A")
|
74479787147AFIXED IND 470NH 1.8A 40 MOHM SMD |
3,963 |
|
Datasheet | WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.8 A | 950mA | Shielded | 40mOhm | 15 @ 1MHz | 110MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

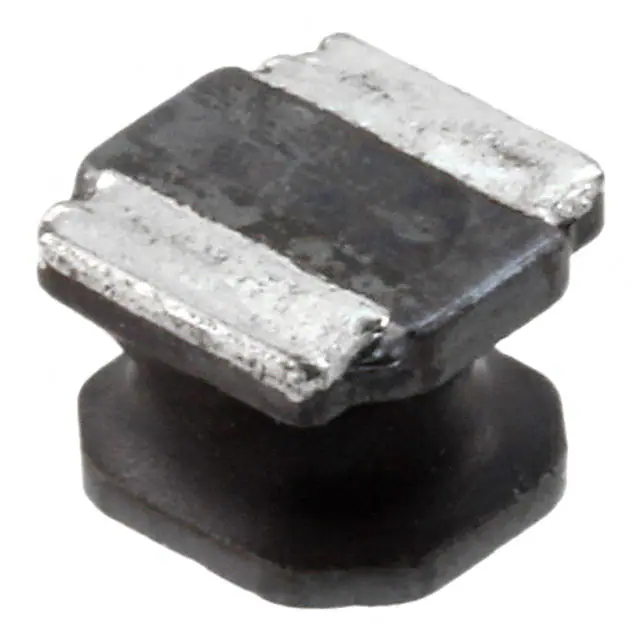

74404054681FIXED IND 680UH 250MA 3.98OHM SM |
3,665 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 250 mA | 300mA | Shielded | 3.98Ohm | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
744918242FIXED IND 422NH 2.5A 60 MOHM SMD |
2,353 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 422 nH | ±5% | 2.5 A | - | Unshielded | 60mOhm Max | 100 @ 50MHz | 540MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
|
744918211FIXED IND 111NH 3.5A 15 MOHM SMD |
3,885 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 111 nH | ±5% | 3.5 A | - | Unshielded | 15mOhm Max | 100 @ 50MHz | 1.02GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
74404052082FIXED IND 8.2UH 1.7A 96.8MOHM SM |
2,637 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 1.7 A | 2.1A | Shielded | 96.8mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
