Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

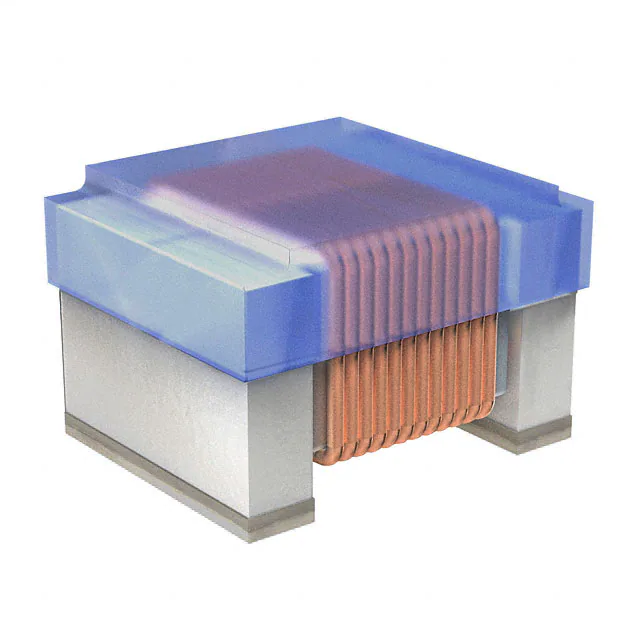

744765140GAFIXED IND 40NH 320MA 438MOHM SMD |
3,900 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 40 nH | ±2% | 320 mA | - | Unshielded | 438mOhm Max | 26 @ 250MHz | 2.24GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765090GAFIXED IND 9NH 680MA 104MOHM SMD |
4,614 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9 nH | ±0.2nH | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 4.16GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765156GAFIXED IND 56NH 100MA 970MOHM SMD |
2,369 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 100 mA | - | Unshielded | 970mOhm Max | 22 @ 200MHz | 1.76GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765051GAFIXED IND 5.1NH 800MA 83MOHM SMD |
1,002 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±0.2nH | 800 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765182GAFIXED IND 82NH 100MA 1.25OHM SMD |
4,906 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 100 mA | - | Unshielded | 1.25Ohm Max | 20 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765118GAFIXED IND 18NH 420MA 230MOHM SMD |
4,525 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 420 mA | - | Unshielded | 230mOhm Max | 25 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
74478608FIXED IND 8.2NH 600MA 400MOHM SM |
1,170 |
|
Datasheet | WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.8GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
74478605FIXED IND 5.6NH 600MA 300MOHM SM |
2,045 |
|
Datasheet | WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 600 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 4.6GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
74478604FIXED IND 4.7NH 600MA 300MOHM SM |
1,715 |
|
Datasheet | WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 600 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 5.4GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0603 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.037" (0.95mm) |
|
744760033AFIXED IND 3.3NH 800MA 80MOHM SMD |
3,260 |
|
Datasheet | WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.2nH | 800 mA | - | Unshielded | 80mOhm Max | 60 @ 1GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
