Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447471682FIXED IND 6.8MH 240MA 10 OHM TH |
2,343 |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 240 mA | 180mA | Shielded | 10Ohm Max | - | 540kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
744104FIXED IND 167UH 1.35A 400MOHM TH |
4,345 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 167 µH | ±20% | 1.35 A | 720mA | Unshielded | 400mOhm Max | - | 4.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
74458215FIXED IND 150UH 1.5A 250MOHM SMD |
3,686 |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.5 A | 2.7A | Unshielded | 250mOhm Max | - | 4.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

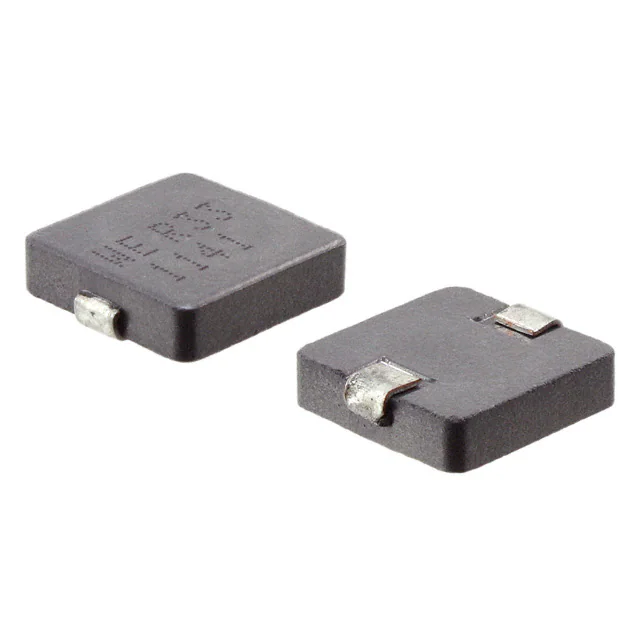

744373770056FIXED IND 560NH 18.5A 0.0017OHM |
3,421 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 18.5 A | 42.8A | Shielded | 1.7mOhm Max | - | 59MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744373770022FIXED IND 220NH 25A 0.0009OHM SM |
4,500 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 25 A | 57.4A | Shielded | 0.9mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744116FIXED IND 345UH 2.1A 200 MOHM TH |
1,515 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 345 µH | ±20% | 2.1 A | 500mA | Unshielded | 200mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|
74459222FIXED IND 220UH 1.2A 0.47OHM SMD |
4,496 |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 1.2 A | 1.9A | Shielded | 470mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
78433391500WE-CHSA PERFORMANCE SMD HIGH CUR |
4,771 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 4.3 A | 11.3A | Shielded | 60.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
7847132060WE-RCIT ROD CORE INDUCTOR THT 6. |
4,961 |
|
Datasheet | WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 6 µH | ±25% | 15 A | 45A | Unshielded | 3.5mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | - |
|
|
78433290360WE-CHSA PERFORMANCE SMD HIGH CUR |
4,420 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.6 µH | ±20% | 12.2 A | 20.6A | Shielded | 8.2mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
