Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744760022AFIXED IND 2.2NH 800MA 60MOHM SMD |
1,592 |
|
Datasheet | WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.2nH | 800 mA | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
7447629015WE-GFH HIGH FREQUENCY SMT INDUCT |
2,000 |
|
Datasheet | WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.5 µH | ±20% | 750 mA | - | Unshielded | 504mOhm Max | 20 @ 7.96MHz | 220MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
|
744765212AWE-KI SMT WIRE WOUND CERAMIC IND |
4,105 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±5% | 100 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765182AWE-KI SMT WIRE WOUND CERAMIC IND |
2,940 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 82 nH | ±5% | 100 mA | - | Unshielded | 1.25Ohm Max | 20 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744901030WE-TCI THINFILM CHIP INDUCTOR SI |
10,000 |
|
Datasheet | WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 3 nH | ±0.1nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
.jpg "744760318A")
|
744760318AFIXED IND 1.8UH 120MA 3 OHM SMD |
1,580 |
|
Datasheet | WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 120 mA | - | Unshielded | 3Ohm Max | 15 @ 7.96MHz | 120MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

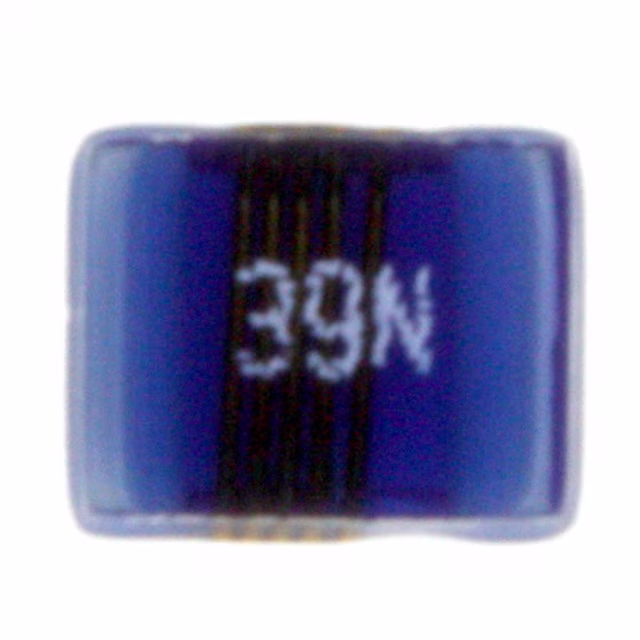

744762139AFIXED IND 39NH 1A 100 MOHM SMD |
1,413 |
|
Datasheet | WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744765110GAFIXED IND 10NH 480MA 195MOHM SMD |
2,992 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±2% | 480 mA | - | Unshielded | 195mOhm Max | 23 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765115GAFIXED IND 15NH 560MA 172MOHM SMD |
2,900 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 560 mA | - | Unshielded | 172mOhm Max | 26 @ 250MHz | 3.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765147GAFIXED IND 47NH 100MA 830MOHM SMD |
2,880 |
|
Datasheet | WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 100 mA | - | Unshielded | 830mOhm Max | 26 @ 200MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
