Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447798180FIXED IND 1.8UH 14.5A 4.5MOHM SM |
524 |
|
Datasheet | WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.8 µH | ±30% | 14.5 A | 12.8A | Shielded | 4.5mOhm Max | - | 74MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
7445430FIXED IND 1MH 220MA 3.2OHM SMD |
590 |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 220 mA | 350mA | Shielded | 3.2Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
744106FIXED IND 393UH 1.1A 700 MOHM TH |
358 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 393 µH | ±20% | 1.1 A | 500mA | Unshielded | 700mOhm Max | - | 2.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
744310055FIXED IND 520NH 14A 3.7 MOHM SMD |
3,059 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 520 nH | ±20% | 14 A | 20A | Shielded | 3.7mOhm | - | 140MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|

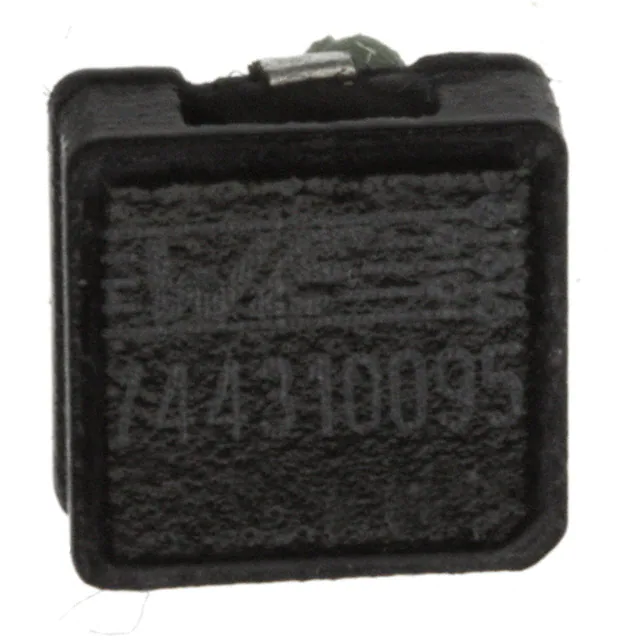

744310095FIXED IND 950NH 11A 6.2 MOHM SMD |
173 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±20% | 11 A | 13A | Shielded | 6.2mOhm | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
|
78433291500WE-CHSA PERFORMANCE SMD HIGH CUR |
297 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 5.4 A | 9.8A | Shielded | 43.1mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290820WE-CHSA PERFORMANCE SMD HIGH CUR |
199 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 8.2 µH | ±20% | 7.1 A | 13.7A | Shielded | 21.5mOhm Max | - | 32MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290750WE-CHSA PERFORMANCE SMD HIGH CUR |
192 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 7.5 µH | ±20% | 7.8 A | 14.6A | Shielded | 20.35mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290510WE-CHSA PERFORMANCE SMD HIGH CUR |
190 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 5.1 µH | ±20% | 9.8 A | 17A | Shielded | 11.9mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290620WE-CHSA PERFORMANCE SMD HIGH CUR |
188 |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 6.2 µH | ±20% | 8.8 A | 16A | Shielded | 15mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
