Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.2mm.jpg "74438334033")
|
74438334033FIXED IND 3.3UH 1.4A 179.7 MOHM |
529 |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 1.4 A | 4A | Shielded | 179.7mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404041680FIXED IND 68UH 450MA 1.495OHM SM |
222 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 450 mA | 480mA | Shielded | 1.495Ohm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
744918190FIXED IND 90NH 3.5A 15 MOHM SMD |
1,418 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 90 nH | ±5% | 3.5 A | - | Unshielded | 15mOhm Max | 100 @ 50MHz | 1.14GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
744766001FIXED IND 100NH 450MA 440MOHM SM |
995 |
|
Datasheet | WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 450 mA | - | Unshielded | 440mOhm Max | 28 @ 25.2MHz | 780MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|

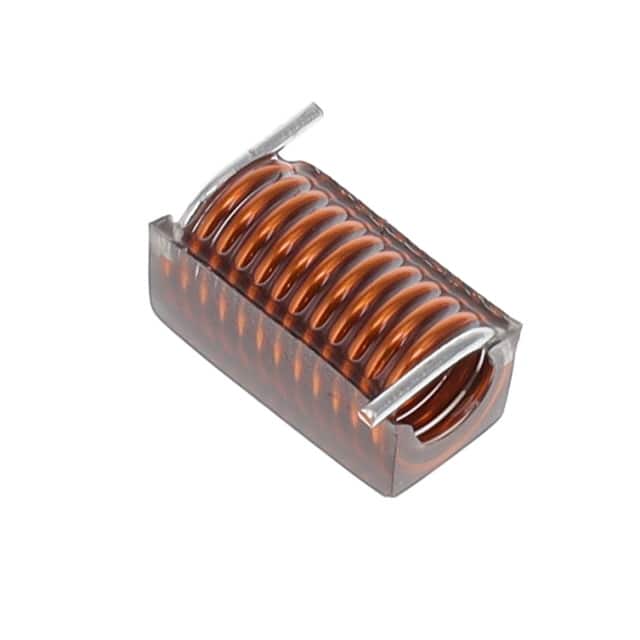

744918217FIXED IND 169NH 3A 25 MOHM SMD |
750 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 169 nH | ±5% | 3 A | - | Unshielded | 25mOhm Max | 100 @ 50MHz | 875MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
7447706015FIXED IND 1.5UH 11.5A 7MOHM SMD |
719 |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 11.5 A | 20A | Shielded | 7mOhm Max | - | 50.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
74404086682FIXED IND 6.8MH 140MA 18.7OHM SM |
681 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±20% | 140 mA | 260mA | Shielded | 18.7Ohm | - | 509kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
74404052012FIXED IND 1.2UH 3.6A 23.4MOHM SM |
7,439 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±30% | 3.6 A | 5.2A | Shielded | 23.4mOhm | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
74404063012FIXED IND 1.2UH 6.2A 11 MOHM SMD |
3,761 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±30% | 4.7 A | 7.3A | Shielded | 11mOhm | - | 106MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
744040630082FIXED IND 820NH 6A 10 MOHM SMD |
3,240 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 6 A | 9.5A | Shielded | 10mOhm | - | 144MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
