Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744787181FIXED IND 180UH 680MA 794MOHM SM |
1,012 |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 680 mA | 620mA | Shielded | 794mOhm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787221FIXED IND 220UH 670MA 876MOHM SM |
568 |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 670 mA | 580mA | Shielded | 876mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787027FIXED IND 2.7UH 4.35A 17MOHM SMD |
449 |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.35 A | 4.5A | Shielded | 17mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|

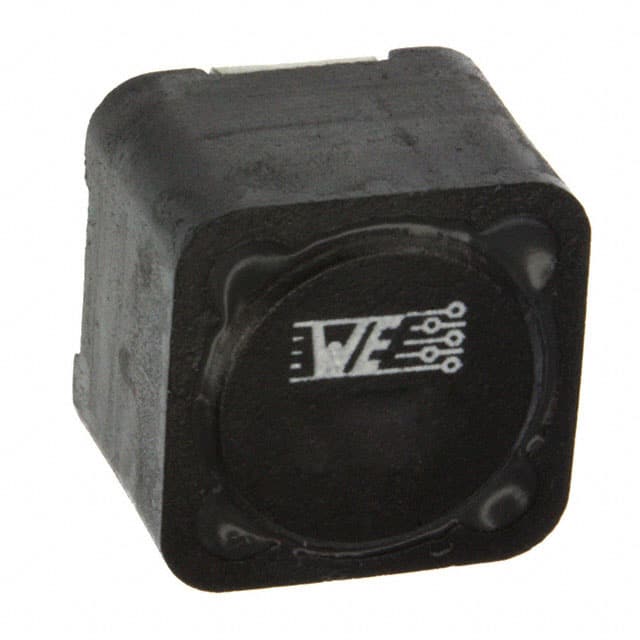

744777001FIXED IND 1UH 6.84A 10 MOHM SMD |
1,634 |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | -20%, +40% | 6.84 A | 10.2A | Shielded | 10mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
74402500047FIXED IND 470NH 3.3A 23 MOHM SMD |
1,509 |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±25% | 3.3 A | 4.7A | Shielded | 23mOhm Max | - | 290MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
74438366015FIXED IND 1.5UH 6.7A 21.3MOHM SM |
999 |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 6.7 A | 9.5A | Shielded | 21.3mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
744383660082FIXED IND 820NH 8.8A 9.6MOHM SMD |
810 |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 8.8 A | 11A | Shielded | 9.6mOhm Max | - | 53.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
7847110020WE-RCIT ROD CORE INDUCTOR THT 2. |
1,140 |
|
Datasheet | WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 4 A | 5A | Unshielded | 11mOhm | - | 290MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.126" Dia x 0.484" L (3.20mm x 12.30mm) | - |
|
|
7847121020WE-RCIT ROD CORE INDUCTOR THT 2. |
202 |
|
Datasheet | WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 10 A | 32A | Unshielded | 3.8mOhm | - | 150MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) | - |
|
7447480152FIXED IND 1.5MH 680MA 1.8 OHM TH |
222 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 680 mA | 600mA | Unshielded | 1.8Ohm Max | - | 950kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
