Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

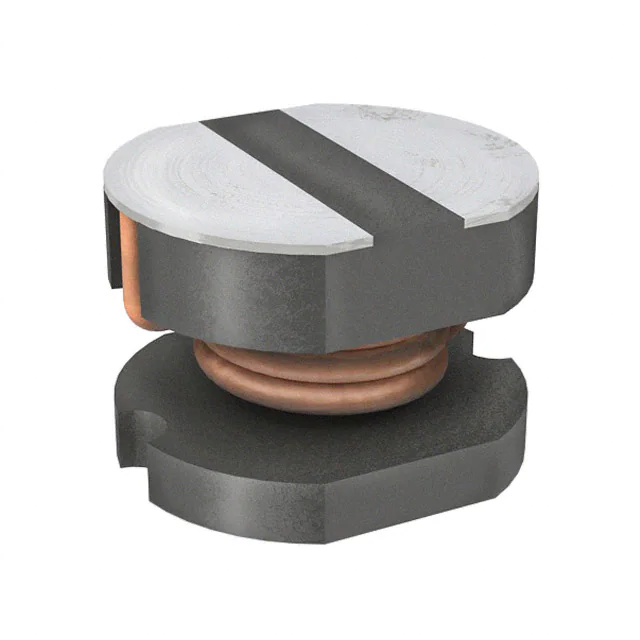

744773039FIXED IND 3.9UH 1.88A 94MOHM SMD |
901 |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.88 A | 2.57A | Unshielded | 94mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
784773122FIXED IND 22UH 1A 370 MOHM SMD |
749 |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1.22A | Unshielded | 370mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
74451168FIXED IND 68UH 400MA 0.29OHM SMD |
1,554 |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 68 µH | ±20% | 400 mA | 120mA | Shielded | 290mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
74451222FIXED IND 220UH 220MA 0.77OHM SM |
863 |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 220 mA | 80mA | Shielded | 770mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7445120FIXED IND 100UH 300MA 0.48OHM SM |
186 |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 100 µH | ±20% | 300 mA | 90mA | Shielded | 480mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
784787180WE-PD2SA SMT SHIELDED POWER INDU |
640 |
|
Datasheet | WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±25% | 2.15 A | 1.9A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787100WE-PD2SA SMT SHIELDED POWER INDU |
446 |
|
Datasheet | WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±25% | 2.6 A | 2.6A | Shielded | 43mOhm Max | - | 24MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
74438313015FIXED IND 1.5UH 950MA 237MOHM SM |
3,023 |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±30% | 950 mA | 2.7A | Shielded | 237mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74438313012FIXED IND 1.2UH 1.3A 174MOHM SMD |
2,692 |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±30% | 1.3 A | 3.2A | Shielded | 174mOhm Max | - | 109MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
744383130033FIXED IND 330NH 1.9A 84 MOHM SMD |
2,610 |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±30% | 1.9 A | 4.9A | Shielded | 84mOhm Max | - | 215MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
