Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHA103EBFIXED IND 250UH 1.8A 280 MOHM TH |
190 |
|
Datasheet | IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 1.8 A | - | Unshielded | 280mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 1.050" L (12.07mm x 26.67mm) | - |
|
IHLP6767GZERR56M11FIXED IND 560NH 61A 1.05MOHM SMD |
200 |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 61 A | 66A | Shielded | 1.05mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER1R0M11FIXED IND 1UH 55.5A 1.27MOHM SMD |
246 |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 55.5 A | 32A | Shielded | 1.27mOhm Max | - | 34MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHD3EB472LFIXED IND 4.7MH 400MA 3.79OHM TH |
132 |
|
Datasheet | IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±15% | 400 mA | 260mA | Unshielded | 3.79Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
IHSM5832ER5R6LFIXED IND 5.6UH 7A 24 MOHM SMD |
500 |
|
Datasheet | IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±15% | 7 A | 2.6A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
IH03BQ500KFIXED IND 50UH 5.6A 50 MOHM TH |
150 |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 5.6 A | 8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - |
|

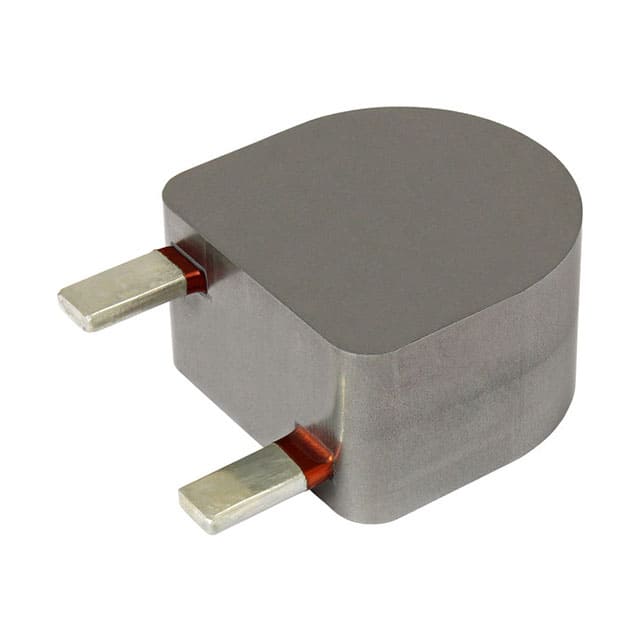

IHXL1500VZEB1R5M5AFIXED IND 1.5UH 178A 0.26MOHM TH |
196 |
|
Datasheet | IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 1.5 µH | ±20% | 178 A | - | Shielded | 0.26mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
ILSB1206ER120KFIXED IND 12UH 15MA 1.05 OHM SMD |
3,000 |
|
Datasheet | ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 15 mA | - | Shielded | 1.05Ohm Max | 45 @ 2MHz | 26MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
IRF24ER470KFIXED IND 47UH 205MA 2.3 OHM TH |
5,000 |
|
Datasheet | IRF-24 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 205 mA | - | Unshielded | 2.3Ohm Max | 50 @ 2.52MHz | 8.5MHz | - | -20°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.276" L (3.00mm x 7.00mm) | - |
-Unshielded-Inductor.jpg "IMC0805ER5N6J01")
|
IMC0805ER5N6J01FIXED IND 5.6NH 600MA 80MOHM SMD |
2,000 |
|
Datasheet | IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 60 @ 1GHz | 5.8GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
