Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1212BZEV1R0M01FIXED IND SMD |
3,434 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP1212ABEV1R2M01FIXED IND SMD |
2,976 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

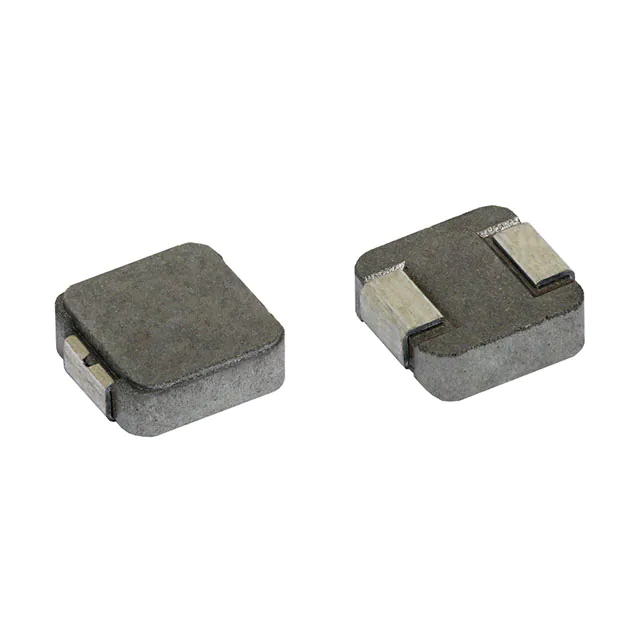

IHLP1212ABEVR15MA1IHLP-1212AB-A1 .15 20% EV E3 |
3,881 |
|
Datasheet | IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 9.06 A | 13.13A | Shielded | 12.14mOhm Max | - | 320MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212ABEVR33MA1IHLP-1212AB-A1 .33 20% EV E3 |
3,985 |
|
Datasheet | IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 6.96 A | 9.32A | Shielded | 18.34mOhm Max | - | 180MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212ABEVR47MA1IHLP-1212AB-A1 .47 20% EV E3 |
3,696 |
|
Datasheet | IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 5.86 A | 8.17A | Shielded | 27.39mOhm Max | - | 157MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
IHLP1212BZEVR47M5AFIXED IND 470NH 6.73A 21.75MOHM |
7,975 |
|
Datasheet | IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6.73 A | 4.66A | Shielded | 21.75mOhm Max | - | 135MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
IHLP1212AZEVR33M5AFIXED IND 330NH 5.85A 23.3 MOHM |
3,977 |
|
Datasheet | IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 5.85 A | 5.05A | Shielded | 23.3mOhm Max | - | 187MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|
|
IHLP1212AZEVR22M5AFIXED IND 220NH 7.72A 14.87MOHM |
3,968 |
|
Datasheet | IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 7.72 A | 5.88A | Shielded | 14.87mOhm Max | - | 225MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|
IHLP1212ABEVR33M5AFIXED IND 330NH 6.42A 16.33MOHM |
3,924 |
|
Datasheet | IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 6.42 A | 5.26A | Shielded | 16.33mOhm Max | - | 165MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212BZEVR68M5AFIXED IND 680NH 5.96A 27.75MOHM |
3,598 |
|
Datasheet | IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 5.96 A | 4.27A | Shielded | 27.75mOhm Max | - | 106MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
