Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE4040DDEW100M5AFIXED IND 10UH 6.5A 0.03306OHM |
386 |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
IHLP5050CEERR68M01FIXED IND 680NH 28A 2.5 MOHM SMD |
1,717 |
|
Datasheet | IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 28 A | 49A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
IMC1812ER102KFIXED IND 1MH 30MA 40 OHM SMD |
1,500 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHLP4040EDER1R0M5AFIXED IND 1UH 26.7A 2.25MOHM SMD |
1,202 |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 26.7 A | 17.61A | Shielded | 2.25mOhm Max | - | 39.85MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
IHLP4040EDER8R2M5AFIXED IND 8.2UH 8.61A 22.36 MOHM |
956 |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 8.61 A | 11.1A | Shielded | 22.36mOhm Max | - | 12.55MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|

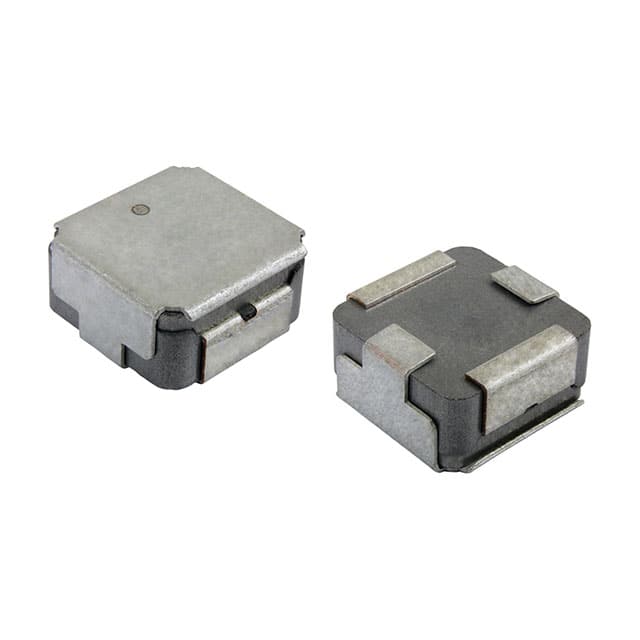

IHLE3232DDER330M5AIHLE-3232DD-5A 33 20% ER E3 |
901 |
|
Datasheet | IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.1 A | 3.2A | Shielded | 159.43mOhm Max | - | 6.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
|
IHLE4040DDEW150M5AFIXED IND 15UH 5.1A 0.05029OHM |
526 |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 5.1 A | 7.7A | Shielded | 50.29mOhm Max | - | 10.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
IHLP5050EZER4R7M5AFIXED IND 4.7UH 15.3A 10.1 MOHM |
167 |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 15.3 A | 17.8A | Shielded | 10.1mOhm Max | - | 15.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLE3232DDER150M5AIHLE-3232DD-5A 15 20% ER E3 |
1,066 |
|
Datasheet | IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 4.8 A | 3.6A | Shielded | 66.34mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
IHLP4040EDER330M5AFIXED IND 33UH 4.4A 79.18MOHM SM |
104 |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 4.4 A | 4.4A | Shielded | 79.18mOhm Max | - | 6.07MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
