Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616ABERR10M01FIXED IND 100NH 11.5A 6 MOHM SMD |
3,220 |
|
Datasheet | IHLP-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 11.5 A | 25A | Shielded | 6mOhm Max | - | 277MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
IHLP1616ABER1R0M01FIXED IND 1UH 4A 52.5 MOHM SMD |
4,834 |
|
Datasheet | IHLP-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4 A | 7A | Shielded | 52.5mOhm Max | - | 64MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
IHLP1616ABERR22M01FIXED IND 220NH 8.5A 12 MOHM SMD |
5,388 |
|
Datasheet | IHLP-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 8.5 A | 20A | Shielded | 12mOhm Max | - | 183MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
IHLP1616ABER1R5M11FIXED IND 1.5UH 3.25A 75MOHM SMD |
4,729 |
|
Datasheet | IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.25 A | 3.25A | Shielded | 75mOhm Max | - | 53MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
IHLP2020BZERR22M01FIXED IND 220NH 15A 5.2 MOHM SMD |
3,570 |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 15 A | 22A | Shielded | 5.2mOhm Max | - | 145MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZER4R7M01FIXED IND 4.7UH 2.8A 116.6 MOHM |
1,980 |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2.8 A | 5A | Shielded | 116.6mOhm Max | - | 28MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZERR47M11FIXED IND 470NH 12.5A 7.7MOHM SM |
5,548 |
|
Datasheet | IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 12.5 A | 8A | Shielded | 7.7mOhm Max | - | 83MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZERR22M11FIXED IND 220NH 9A 7 MOHM SMD |
2,565 |
|
Datasheet | IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 9 A | 9A | Shielded | 7mOhm Max | - | 158MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

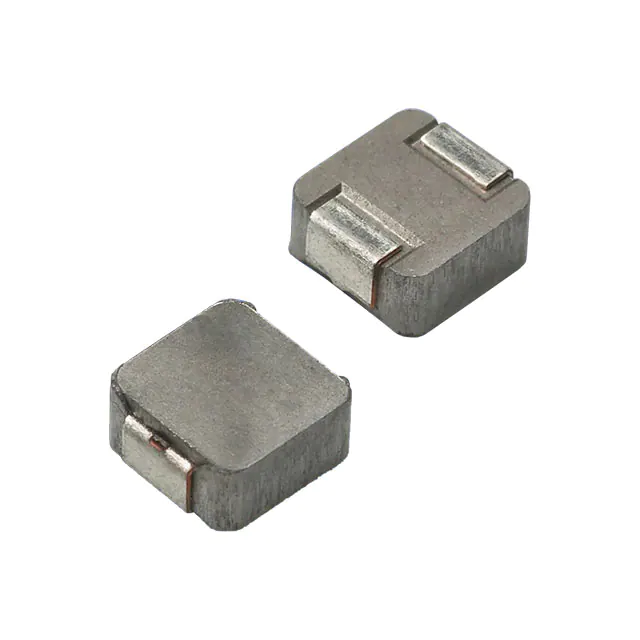

IHLP1616BZER1R0M1AIHLP-1616BZ-1A 1 20% ER E3 |
4,881 |
|
Datasheet | IHLP-1616BZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 4.5 A | 5A | Shielded | 27mOhm Max | - | 64MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP1616BZERR47M0HFIXED IND 470NH 8.5A 14.1MOHM SM |
3,959 |
|
Datasheet | IHLP-1616BZ-0H | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | 8.5 A | 13.1A | Shielded | 14.1mOhm Max | - | 145MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
