Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHDF1300AEEH2R2K1AFIXED IND 2.2UH 59A 1.11MOHM TH |
3,990 |
|
Datasheet | IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 59 A | 149A | Unshielded | 1.11mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
IHTH1125MZEB330M5AFIXED IND 33UH 16.8A 11 MOHM TH |
3,420 |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tray | Active | - | - | 33 µH | ±20% | 16.8 A | 22A | Shielded | 11mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
|
IHTH1125MZEB220M5AFIXED IND 22UH 21A 6.83 MOHM TH |
2,794 |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 22 µH | ±20% | 21 A | 23A | Shielded | 6.83mOhm Max | - | 5.61MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
IH10BQ101KFIXED IND 100UH 10A 30 MOHM TH |
3,328 |
|
Datasheet | IH | Radial, Horizontal Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | - |
|

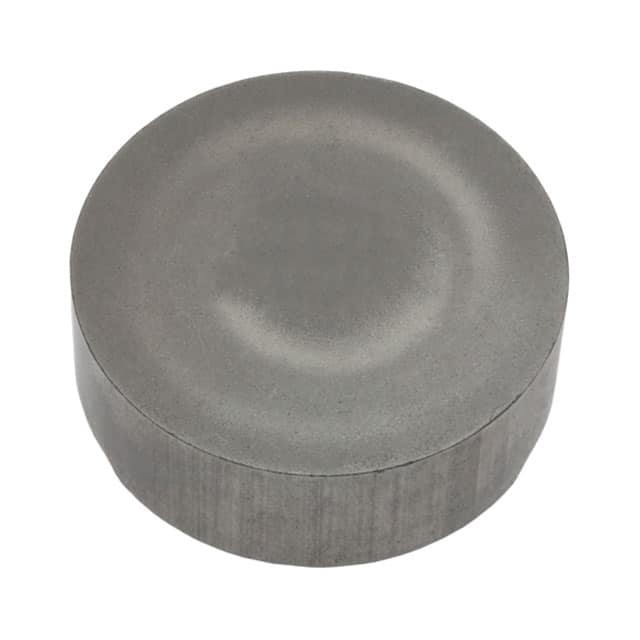

IHTH1500MZEB2R2M5AIHTH-1500MZ-5A 2.2 20% EB E2 |
4,134 |
|
Datasheet | IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 2.2 µH | ±20% | 81.7 A | 111.4A | Shielded | 0.54mOhm Max | - | 14.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
|
IHTH1500MZEBR47M5AIHTH-1500MZ-5A .47 20% EB E2 |
4,207 |
|
Datasheet | IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 470 nH | ±20% | 134.8 A | 156.2A | Shielded | 0.2mOhm Max | - | 54.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
IHXL1500VZEBR68M5AFIXED IND 680NH 235A 0.13MOHM TH |
3,065 |
|
Datasheet | IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 680 nH | ±20% | 235 A | - | Shielded | 0.13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
ILSB0603ER2R2KFIXED IND 2.2UH 15MA 1.15OHM SMD |
222 |
|
Datasheet | ILSB-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 15 mA | - | Shielded | 1.15Ohm Max | 35 @ 10MHz | 58MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
-Unshielded-Inductor.jpg "IMC0805ER27NJ01")
|
IMC0805ER27NJ01FIXED IND 27NH 600MA 120MOHM SMD |
894 |
|
Datasheet | IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 60 @ 500MHz | 2.6GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
IMC1008ERR22JFIXED IND 220NH 800MA 450MOHM SM |
350 |
|
Datasheet | IMC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 800 mA | - | Unshielded | 450mOhm Max | 45 @ 100MHz | 730MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
