Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP8787MZER100M5AFIXED IND 10UH 28A 4.14 MOHM SMD |
131 |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 28 A | 28A | Shielded | 4.14mOhm Max | - | 6.04MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHLP8787MZER6R8M51FIXED IND 6.8UH 36A 3.09MOHM SMD |
4,469 |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 36 A | 36A | Shielded | 3.09mOhm Max | - | 8.03MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHLP8787MZER750M5AFIXED IND 75UH 12A 32.35 MOHM |
3,115 |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 75 µH | ±20% | 12 A | 12A | Shielded | 32.35mOhm Max | - | 2.01MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDF1300AEEH4R7K10FIXED IND 4.7UH 59A 1.11 MOHM TH |
4,056 |
|
Datasheet | IHDF-1300AE-10 | Nonstandard | Tray | Active | - | Ferrite | 4.7 µH | ±10% | 59 A | 92A | Unshielded | 1.11mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | 0.606" (15.40mm) |
|
|
IHLP8787MZER470M51FIXED IND 47UH 13.5A 17.7MOHM SM |
181 |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 13.5 A | 10A | Shielded | 17.7mOhm Max | - | 2.99MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|

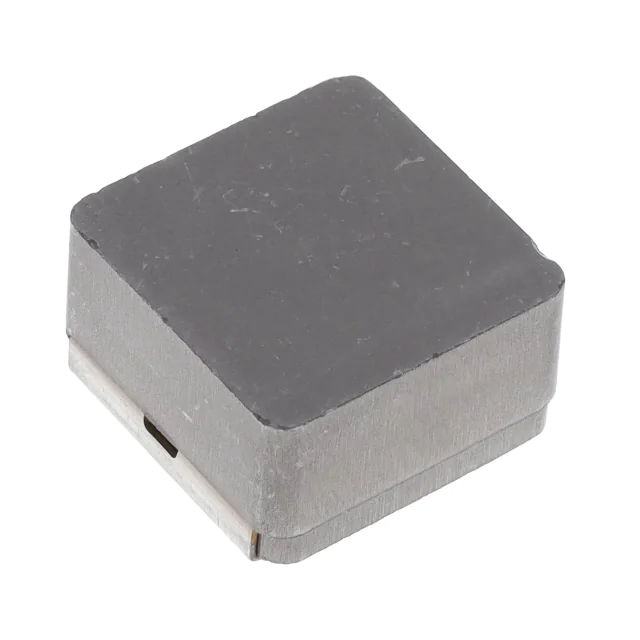

IHLP8787MZER3R3M5AFIXED IND 3.3UH 49A 1.77MOHM SMD |
3,900 |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 49 A | 41A | Shielded | 1.77mOhm Max | - | 12.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER2R2M5AIHLP-8787MZ-5A 2.2 20% ER E3 |
133 |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 58 A | 48A | Shielded | 1.25mOhm Max | - | 17.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDM1008BCEV100M30FIXED IND 10UH 30A 2 MOHM TH |
2,766 |
|
Datasheet | IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 40 A | 68A | Unshielded | 2mOhm Max | - | 22MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHDM1107BBEV3R0M20FG, IHDM-1107BB-20 3.0 20% |
1,523 |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 3 µH | ±20% | 50 A | 192A | Unshielded | 0.97mOhm Max | - | 53MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
ILSB0805ER4R7KFIXED IND 4.7UH 30MA 1 OHM SMD |
370 |
|
Datasheet | ILSB-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Shielded | 1Ohm Max | 45 @ 10MHz | 41MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
