Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-30680FIXED IND 68UH 1.8A 200 MOHM SMD |
4,649 |
|
Datasheet | AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.8 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30681FIXED IND 680UH 400MA 2.2OHM SMD |
4,593 |
|
Datasheet | AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | - | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|

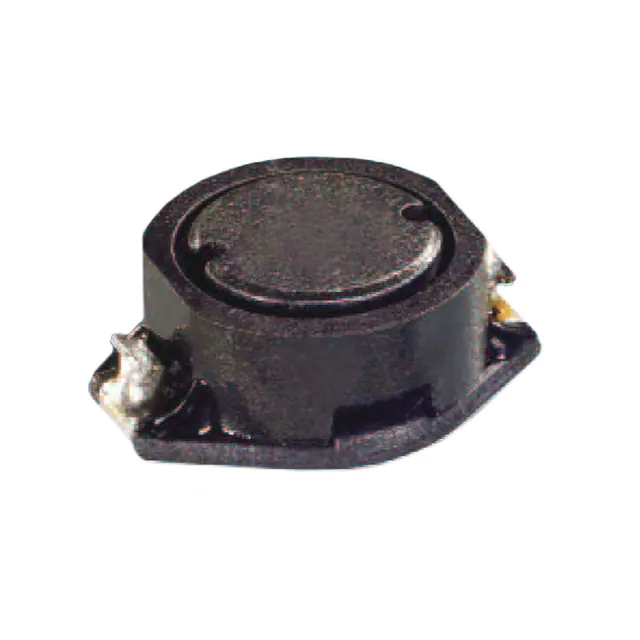

AX1005-102KFIXED IND 1MH 220MA 3.2 OHM SMD |
4,752 |
|
Datasheet | AX1005 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | - | Shielded | 3.2Ohm Max | 70 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.193" (4.90mm) |
|
AX97-40681FIXED IND 680UH 780MA 1 OHM SMD |
1,993 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 780 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40100FIXED IND 10UH 6.5A 20 MOHM SMD |
3,131 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40101FIXED IND 100UH 2A 150 MOHM SMD |
4,674 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40150FIXED IND 15UH 5.3A 30 MOHM SMD |
4,981 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40220FIXED IND 22UH 4.4A 40 MOHM SMD |
1,881 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.4 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40221FIXED IND 220UH 1.3A 330MOHM SMD |
1,465 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | - | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40330FIXED IND 33UH 3.5A 60 MOHM SMD |
4,681 |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.5 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
