Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1334K000FIXED IND 330UH 280MA 3.29OHM SM |
1,754 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 280 mA | 550mA | Unshielded | 3.29Ohm Max | 20 @ 796kHz | 3.4MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1222K000FIXED IND 2.2UH 2.71A 38MOHM SMD |
1,685 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 2.71 A | 6.3A | Unshielded | 38mOhm Max | 15 @ 7.96MHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
RL622-221K-RCFIXED IND 220UH 640MA 650MOHM TH |
1,565 |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 640 mA | - | Unshielded | 650mOhm Max | 20 @ 796kHz | 2.7MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
74404042022FIXED IND 2.2UH 2.2A 42 MOHM SMD |
1,545 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.2 A | 3.4A | Shielded | 42mOhm | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

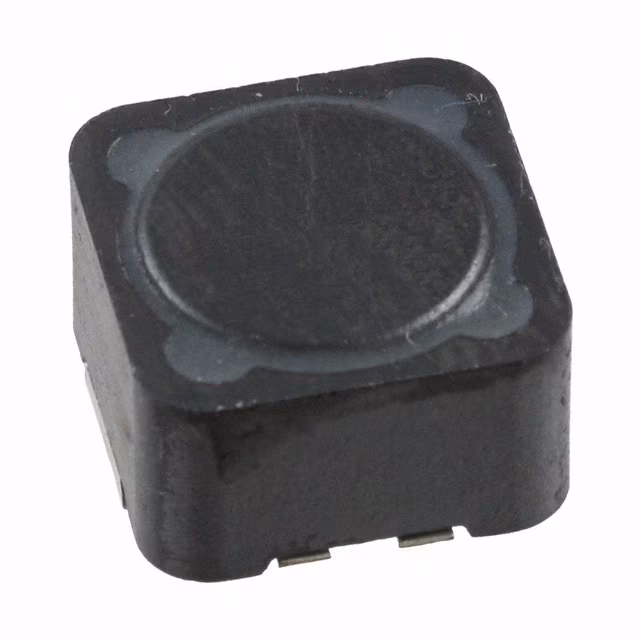

DR127-471-RFIXED IND 470UH 850MA 861MOHM SM |
1,432 |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 850 mA | 1.68A | Shielded | 861mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
AIUR-06-151KFIXED IND 150UH 1.9A 162 MOHM TH |
1,426 |
|
Datasheet | AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.9 A | 2.4A | Unshielded | 162mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
74404032330FIXED IND 33UH 500MA 911MOHM SMD |
1,424 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 540mA | Shielded | 911mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74404032068FIXED IND 6.8UH 1.16A 120MOHM SM |
1,175 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.16 A | 940mA | Shielded | 120mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
DR125-471-RFIXED IND 470UH 870MA 718MOHM SM |
1,165 |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 870 mA | 1.02A | Shielded | 718mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
AIUR-06-101KFIXED IND 100UH 2.1A 108 MOHM TH |
1,008 |
|
Datasheet | AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | 2.8A | Unshielded | 108mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
74404024150FIXED IND 15UH 470MA 830MOHM SMD |
940 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 470 mA | 750mA | Shielded | 830mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
RL622-103K-RCFIXED IND 10MH 50MA 25 OHM TH |
906 |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 50 mA | - | Unshielded | 25Ohm Max | 40 @ 79.6kHz | 300kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
EXLA1V0505-100-RIND MOLDED SHLD 10.0UH 3.8A |
900 |
|
Datasheet | EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5 A | 5.4A | Shielded | 43mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
PCMB053T-2R2MSFIXED IND 2.2UH 5.5A 35 MOHM SMD |
773 |
|
Datasheet | PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
|
AIUR-06-100KFIXED IND 10UH 5A 31 MOHM TH |
545 |
|
Datasheet | AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 5 A | 8.8A | Unshielded | 31mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
RL622-1R5K-RCFIXED IND 1.5UH 8.5A 16 MOHM TH |
538 |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 8.5 A | - | Unshielded | 16mOhm Max | 20 @ 7.96MHz | 130MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
RL622-330K-RCFIXED IND 33UH 1.6A 90 MOHM TH |
499 |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.6 A | - | Unshielded | 90mOhm Max | 30 @ 2.52MHz | 7.8MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

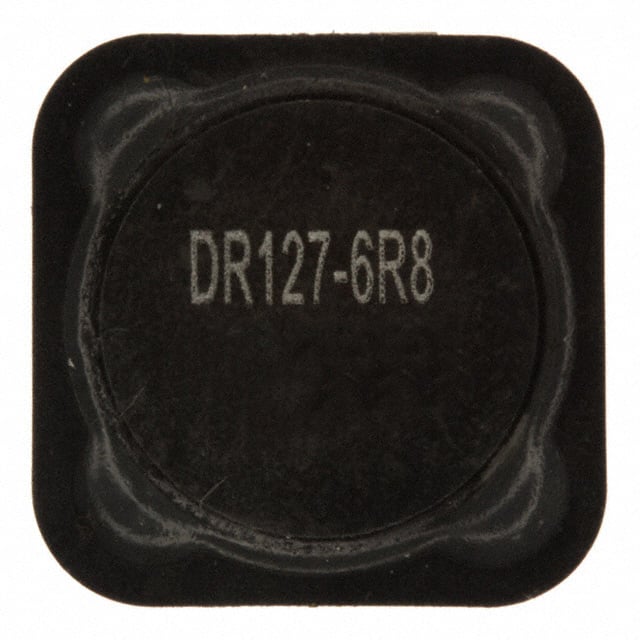

DR127-6R8-RFIXED IND 6.8UH 7.34A 11.6 MOHM |
340 |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 7.34 A | 13.3A | Shielded | 11.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
74404024010FIXED IND 1UH 2.2A 37 MOHM SMD |
246 |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.3 A | 2.5A | Shielded | 37mOhm | - | 159MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
PCMB053T-1R0MSFIXED IND 1UH 7A 14 MOHM SMD |
48,134 |
|
Datasheet | PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7 A | 11A | Unshielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
