Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU10060120T-R15LFIXED IND 150NH 83A 0.12MOHM SMD |
300 |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 83 A | 92A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
HPL505032F1070MRD3PFIXED IND 70NH 34A 777 MOHM SMD |
2,492 |
|
Datasheet | HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
|
HPL505032F1080MRD3PFIXED IND 80NH 34A 777 MOHM SMD |
1,938 |
|
Datasheet | HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
VLB7050HT-R11MFIXED IND 110NH 36A 0.27MOHM SMD |
342 |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110 nH | ±20% | 36 A | 47A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
|

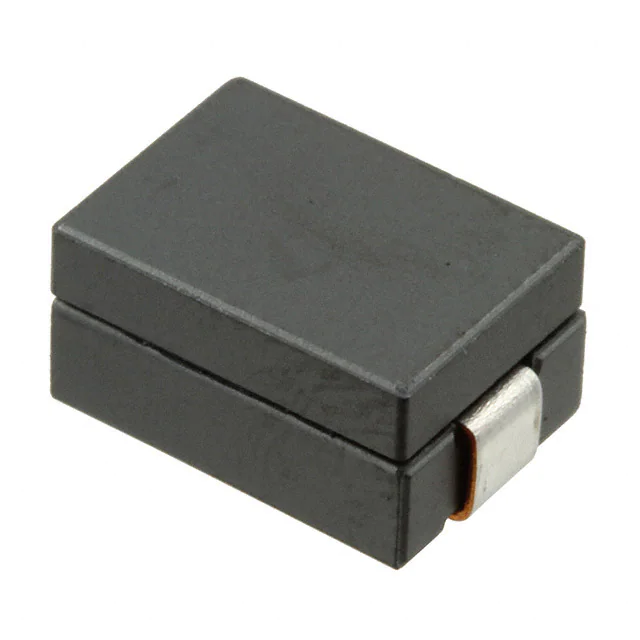

VLB10050HT-R12MFIXED IND 120NH 31A 0.35MOHM SMD |
8,609 |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 31 A | 68A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|
VLM10555T-2R5M8R0-2FIXED IND 2.5UH 8A 7.71 MOHM SMD |
366 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 8 A | 15A | Shielded | 7.71mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-4R3M7R2-2FIXED IND 4.3UH 7.2A 9.55MOHM SM |
312 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 7.2 A | 9A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-3R3M7R2-2FIXED IND 3.3UH 7.2A 9.55MOHM SM |
302 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.2 A | 12A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
SPM12565VT-1R5M-DFIXED IND 1.5UH 22.3A 0.0028OHM |
349 |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 22.3 A | 32.8A | Shielded | 2.8mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SPM12565VT-6R8M-DFIXED IND 6.8UH 11.6A 0.0103OHM |
518 |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 11.6 A | 20.9A | Shielded | 10.3mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
