Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDWK4040T1R5MMFIXED IND 1.5UH 4.1A 41 MOHM SMD |
1,654 |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 4.1 A | 9.4A | Shielded | 41mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
MDWK4040TR68MMFIXED IND 680NH 7.3A 16 MOHM SMD |
1,554 |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 7.3 A | 12A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
MDWK4040TR47NMFIXED IND 470NH 7.8A 13 MOHM SMD |
1,015 |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±30% | 7.8 A | 15A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
NRS8040T101MJGKVFIXED IND 100UH 1A 364 MOHM SMD |
15,643 |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.1A | Shielded | 364mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T470MJGKVFIXED IND 47UH 1.5A 182 MOHM SMD |
5,231 |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.5A | Shielded | 182mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
NRS8030T4R7MJGJVFIXED IND 4.7UH 4A 28.6 MOHM SMD |
5,023 |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 3.6A | Shielded | 28.6mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8040T2R0NJGJVFIXED IND 2UH 6.3A 11.7 MOHM SMD |
2,955 |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | 8.1A | Shielded | 11.7mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

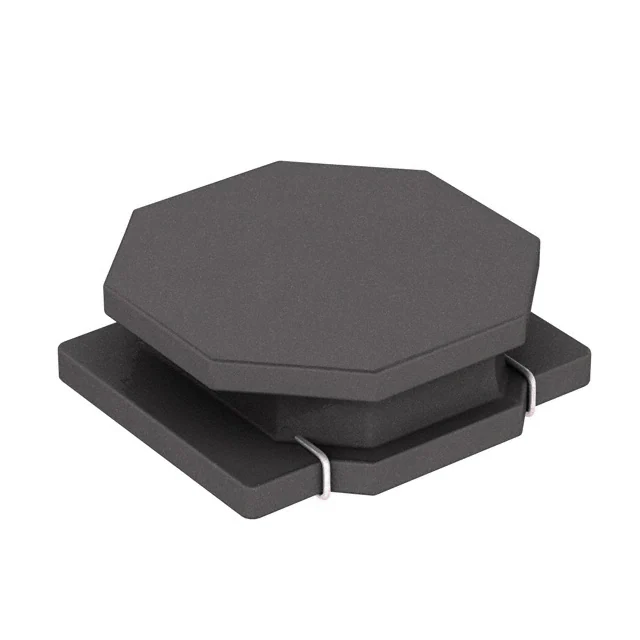

MDMK3030T1R0MMFIXED IND 1UH 3.1A 50 MOHM SMD |
2,653 |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.1 A | 4.3A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
NRS8040T330MJGKVFIXED IND 33UH 1.7A 130 MOHM SMD |
2,416 |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 2A | Shielded | 130mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T6R8NJGJVFIXED IND 6.8UH 3.7A 32.5MOHM SM |
2,160 |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4.4A | Shielded | 32.5mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
