Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR6012T6R8MEFIXED IND 6.8UH 1.18A 198MOHM SM |
1,236 |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.18 A | 1.3A | Shielded | 198mOhm Max | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T220MEFIXED IND 22UH 630MA 636MOHM SMD |
3,530 |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 630 mA | 760mA | Shielded | 636mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T150MEFIXED IND 15UH 790MA 396MOHM SMD |
1,740 |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 790 mA | 800mA | Shielded | 396mOhm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

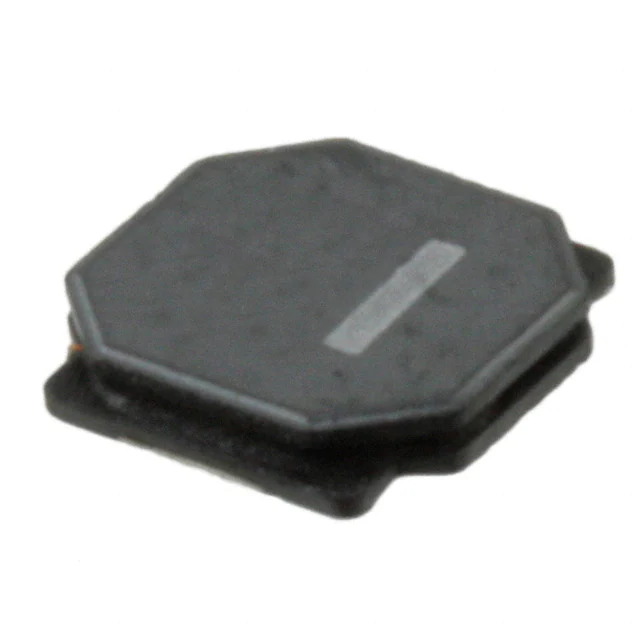

NR6012T330MEFIXED IND 33UH 530MA 840MOHM SMD |
4,364 |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 530 mA | 590mA | Shielded | 840mOhm Max | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LSXBD6060MKT100MEFIXED IND 10UH 1A 282 MOHM SMD |
1,834 |
|
Datasheet | LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1A | Shielded | 235mOhm | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LLXBH10050HL680MFIXED IND 68UH 1.5A 187.2MOHM SM |
3,513 |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.7A | Shielded | 144mOhm | - | 5.6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL221MFIXED IND 220UH 800MA 585MOHM SM |
3,645 |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 1A | Shielded | 450mOhm | - | 3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL4R9NFIXED IND 4.9UH 6A 19.5 MOHM SMD |
2,688 |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.9 µH | ±30% | 6 A | 6.6A | Shielded | 15mOhm | - | 23MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LLXBH10050HL100MFIXED IND 10UH 4.1A 32.5MOHM SMD |
1,503 |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.1 A | 4.7A | Shielded | 25mOhm | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
LSXBH10050HL3R8NFIXED IND 3.8UH 6.8A 16.9MOHM SM |
2,454 |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.8 µH | ±30% | 6.8 A | 7.3A | Shielded | 13mOhm | - | 26MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
