Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMXHF5050WBT1R5NMRINDUCTOR FIXED 1.5UH MEDICAL SMD |
4,584 |
|
Datasheet | LMXH | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 4 A | 4A | Unshielded | 32mOhm Max | - | 75MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LMXHF5050WBT3R3NMRINDUCTOR FIXED 3.3UH MEDICAL SMD |
1,974 |
|
Datasheet | LMXH | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 3.1 A | 2.5A | Unshielded | 49mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

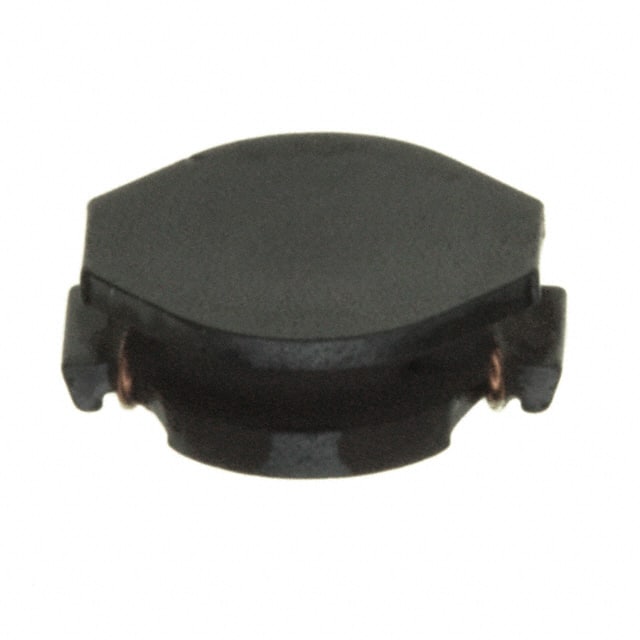

NRS6010T3R3MMGFFIXED IND 3.3UH 1.5A 162MOHM SMD |
4,023 |
|
Datasheet | NR, S Type | 2304 (6010 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1.6A | Shielded | 162mOhm Max | - | 42MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
NRH3010T1R2NNVFIXED IND 1.2UH 1.48A 78MOHM SMD |
3,455 |
|
Datasheet | NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 1.48 A | 1.7A | Shielded | 78mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
LLXND5050XAT3R3MMGFIXED IND 3.3UH 3A 30 MOHM SMD |
1,907 |
|
Datasheet | LLXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | 3.6A | Unshielded | 39mOhm Max | - | 36MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
|
LBXNH8080YKL150MJGFIXED IND 15 UH 2.4A 0.065 OHM |
4,276 |
|
Datasheet | LBXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.9A | Unshielded | 50mOhm | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
LMXNH8080YBL1R4NJGFIXED IND 1.4 UH 7A 0.0091 OHM |
1,673 |
|
Datasheet | LMXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.4 µH | ±30% | 7 A | 10A | Unshielded | 7mOhm | - | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LBXNH8080YBL3R6NJGFIXED IND 3.6 UH 4.9A 0.0195 OHM |
2,540 |
|
Datasheet | LBXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 6.4A | Unshielded | 15mOhm | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LMXNH8080YBL2R0NJGFIXED IND 2.0 UH 6.3A 0.0117 OHM |
2,681 |
|
Datasheet | LMXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | 8.1A | Shielded | 9mOhm | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LMXNH8080YKL100MJGFIXED IND 10 UH 3.1A 0.0442 OHM |
4,785 |
|
Datasheet | LMXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.8A | Unshielded | 34mOhm | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
