Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

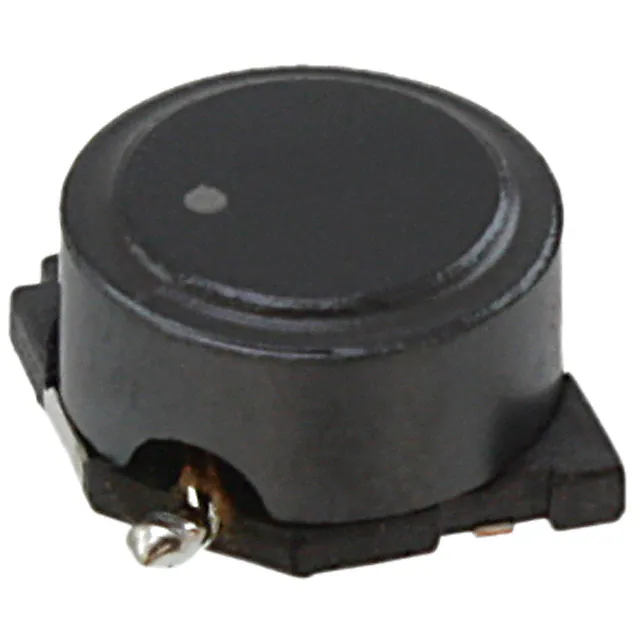

NS10155T150MNAFIXED IND 15UH 3.65A 33.6MOHM SM |
4,600 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.65 A | 4.03A | Shielded | 33.6mOhm Max | - | 15.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
NR10050T2R1NFIXED IND 2.1UH 8.3A 10.4MOHM SM |
7,948 |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.1 µH | ±30% | 8.3 A | 10A | Shielded | 10.4mOhm Max | - | 37MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
NS10165T100MNAFIXED IND 10UH 4.66A 20.4MOHM SM |
2,690 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 20.4mOhm Max | - | 16.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
NS12575T220MNFIXED IND 22UH 4.05A 31.2MOHM SM |
40,283 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.05 A | 5.56A | Shielded | 31.2mOhm Max | - | 9.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
EST0645T100MDGAFIXED IND 10UH 2.6A 38 MOHM SMD |
2,970 |
|
Datasheet | ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 2A | Shielded | 38mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
|
NS12555T152MNFIXED IND 1.5MH 440MA 2.076 OHM |
2,199 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 440 mA | 400mA | Shielded | 2.076Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
NS12565T330MNFIXED IND 33UH 3.22A 46.8MOHM SM |
2,926 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.89A | Shielded | 46.8mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12575T150MNFIXED IND 15UH 5.22A 22.08 MOHM |
3,259 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.22 A | 6.54A | Shielded | 22.08mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12575T680MNFIXED IND 68UH 2.49A 86.4MOHM SM |
2,783 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.49 A | 2.78A | Shielded | 86.4mOhm Max | - | 5.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12575T100MNFIXED IND 10UH 5.55A 18.72 MOHM |
1,590 |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.55 A | 7.65A | Shielded | 18.72mOhm Max | - | 21.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
