Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH6D28NP-3R0NCFIXED IND 3UH 3A 24 MOHM SMD |
35,910 |
|
Datasheet | CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3 µH | ±30% | 3 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

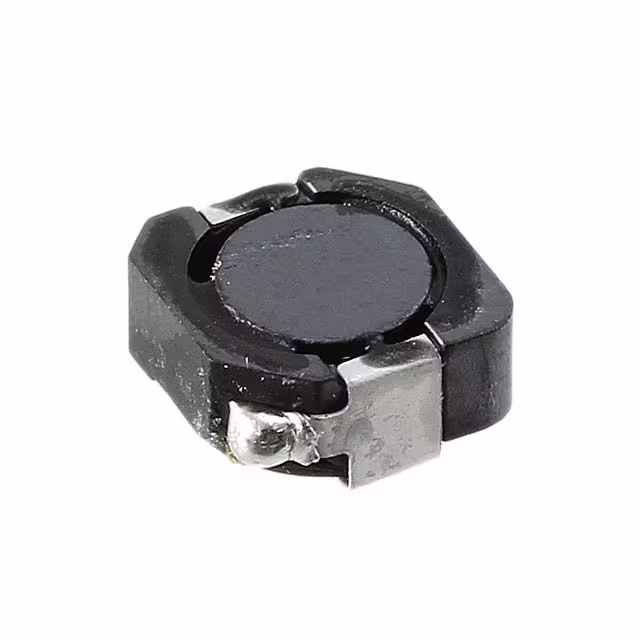

CDRH5D28RNP-100NCFIXED IND 10UH 1.3A 54 MOHM SMD |
55,058 |
|
Datasheet | CDRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.3 A | - | Shielded | 54mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
CDRH4D28NP-2R2NCFIXED IND 2.2UH 2.04A 31.3 MOHM |
40,256 |
|
Datasheet | CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 2.04 A | - | Shielded | 31.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
CDRH5D16NP-4R7NCFIXED IND 4.7UH 2.1A 64.1MOHM SM |
9,611 |
|
Datasheet | CDRH5D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 2.1 A | 2.15A | Shielded | 64.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.220" W (5.60mm x 5.60mm) | 0.071" (1.80mm) |
|

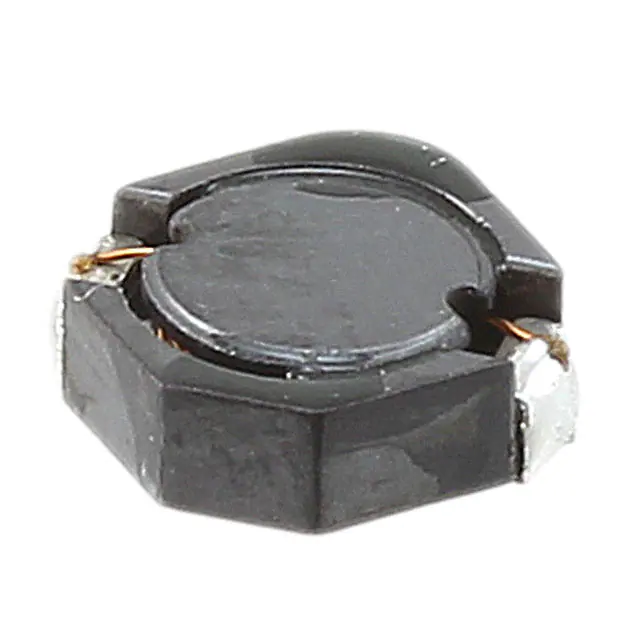

CDRH4D18CLDNP-4R7PCFIXED IND 4.7UH 2A 61 MOHM SMD |
33,489 |
|
Datasheet | CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 2 A | 900mA | Shielded | 61mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
CDRH5D28NP-3R0NCFIXED IND 3UH 2.4A 24 MOHM SMD |
16,458 |
|
Datasheet | CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3 µH | ±30% | 2.4 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
CDRH62BNP-220MC-BFIXED IND 22UH 740MA 340MOHM SMD |
7,673 |
|
Datasheet | CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 740 mA | - | Shielded | 340mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
CDRH4D18NP-100NCFIXED IND 10UH 610MA 200MOHM SMD |
6,663 |
|
Datasheet | CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 610 mA | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
CDRH5D28NP-150NCFIXED IND 15UH 1.1A 103 MOHM SMD |
4,415 |
|
Datasheet | CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.1 A | - | Shielded | 103mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CDRH5D28NP-8R2NCFIXED IND 8.2UH 1.6A 53 MOHM SMD |
3,555 |
|
Datasheet | CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±30% | 1.6 A | - | Shielded | 53mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
