Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104CDMCDDS-R24MCFIXED IND 240NH 43A 1.15MOHM SMD |
277 |
|
Datasheet | 104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 43 A | 70.4A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH80D65BT150NP-220MCFIXED IND 22UH 2.83A 49MOHM SMD |
265 |
|
Datasheet | CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.83 A | 2.94A | Shielded | 49mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CDRH80D65BT150NP-471MCFIXED IND 470UH 610MA 799MOHM SM |
193 |
|
Datasheet | CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 610 mA | 640mA | Shielded | 799mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CDR7D28MNNP-101NCFIXED IND 100UH 650MA 655MOHM SM |
2,031 |
|
Datasheet | CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 650 mA | 750mA | Shielded | 655mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
CDR7D43MNNP-470NCFIXED IND 47UH 900MA 247MOHM SMD |
1,654 |
|
Datasheet | CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±25% | 900 mA | 1.9A | Shielded | 247mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRR75NP-101MCFIXED IND 100UH 830MA 315MOHM SM |
1,122 |
|
Datasheet | CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 830 mA | 440mA | Shielded | 315mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|

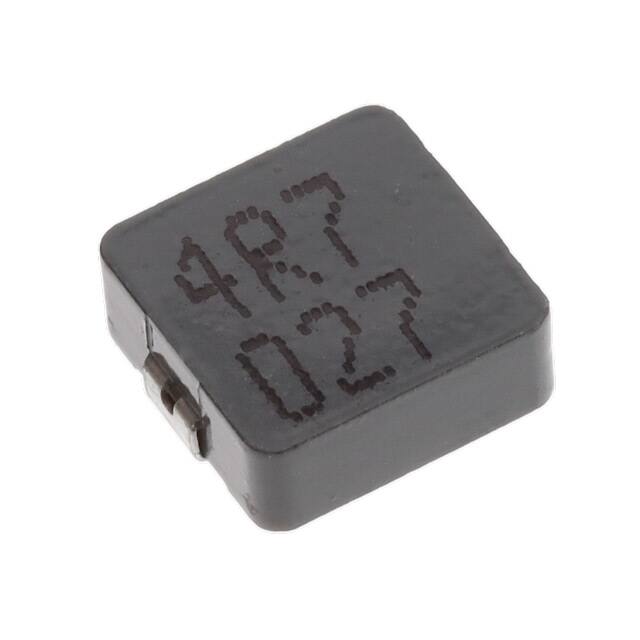

104CDMCDDS-4R7MCFIXED IND 4.7UH 9.5A 18MOHM SMD |
1,004 |
|
Datasheet | 104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 9.5 A | 15.3A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
104CDMCDDS-5R6MCFIXED IND 5.6UH 9A 22.5MOHM SMD |
998 |
|
Datasheet | 104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 9 A | 14A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH103RNP-2R2NC-BFIXED IND 2.2UH 5.1A 16.9MOHM SM |
1,158 |
|
Datasheet | CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 5.1 A | 6.7A | Shielded | 16.9mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
CMD4D13NP-6R8MCFIXED IND 6.8UH 650MA 276MOHM SM |
351 |
|
Datasheet | CMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 650 mA | 810mA | Unshielded | 276mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.057" (1.45mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
