Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDR156NP-470LCFIXED IND 47UH 2.5A 97.8MOHM SMD |
2,705 |
|
Datasheet | CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 2.5 A | 4.2A | Unshielded | 97.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-471LCFIXED IND 470UH 750MA 933.3 MOHM |
3,604 |
|
Datasheet | CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±15% | 750 mA | 1.4A | Unshielded | 933.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-5R6MCFIXED IND 5.6UH 7A 13.5 MOHM SMD |
4,904 |
|
Datasheet | CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 7 A | 12.8A | Unshielded | 13.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-680LCFIXED IND 68UH 2A 144.6 MOHM SMD |
4,709 |
|
Datasheet | CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 2 A | 3.6A | Unshielded | 144.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-681LCFIXED IND 680UH 550MA 1.67OHM SM |
3,835 |
|
Datasheet | CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±15% | 550 mA | 1.1A | Unshielded | 1.67Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|

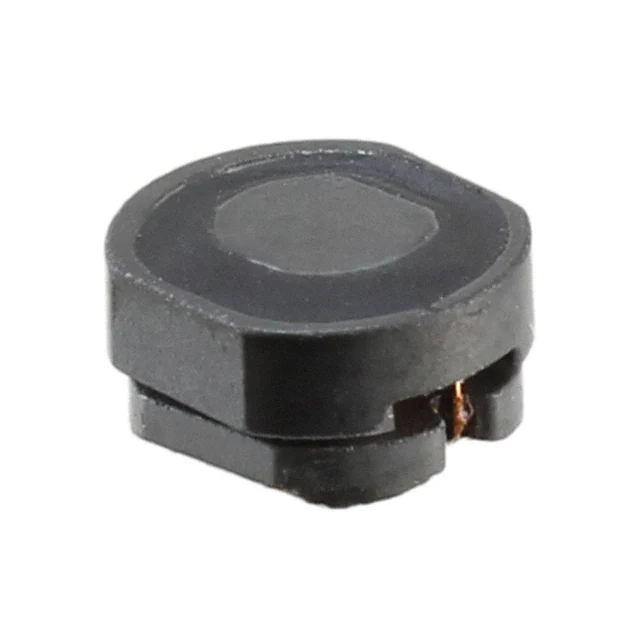

CDR63BNP-120MCFIXED IND 12UH 940MA 160MOHM SMD |
4,047 |
|
Datasheet | CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±20% | 940 mA | - | Shielded | 160mOhm Max | - | 32.2MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-150MCFIXED IND 15UH 860MA 180MOHM SMD |
3,730 |
|
Datasheet | CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 860 mA | - | Shielded | 180mOhm Max | - | 29.3MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-180MCFIXED IND 18UH 780MA 250MOHM SMD |
1,508 |
|
Datasheet | CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 18 µH | ±20% | 780 mA | - | Shielded | 250mOhm Max | - | 26.7MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-270MCFIXED IND 27UH 640MA 360MOHM SMD |
3,352 |
|
Datasheet | CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 27 µH | ±20% | 640 mA | - | Shielded | 360mOhm Max | - | 20.8MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-330LCFIXED IND 33UH 610MA 410MOHM SMD |
3,238 |
|
Datasheet | CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±15% | 610 mA | - | Shielded | 410mOhm Max | - | 18.2MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
