Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDPQ2010NP-120M-250INDUCTOR |
1,616 |
|
Datasheet | CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 12 µH | ±20% | 14 A | 13.5A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-6R2M-250INDUCTOR |
1,326 |
|
Datasheet | CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 6.2 µH | ±20% | 20 A | 19.6A | Shielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-8R8M-250INDUCTOR |
4,780 |
|
Datasheet | CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 8.8 µH | ±20% | 17 A | 15.5A | Shielded | 2.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
CDEP147NP-9R5MC-95FIXED IND 9.5UH 8.5A 13.31 MOHM |
3,277 |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 9.5 µH | ±20% | 8.5 A | 11.2A | Shielded | 13.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
CDMC104NP-R36MFIXED IND 360NH 25A 1.1 MOHM SMD |
1,283 |
|
Datasheet | CDMC104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 360 nH | ±20% | 25 A | 28A | Shielded | 1.1mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

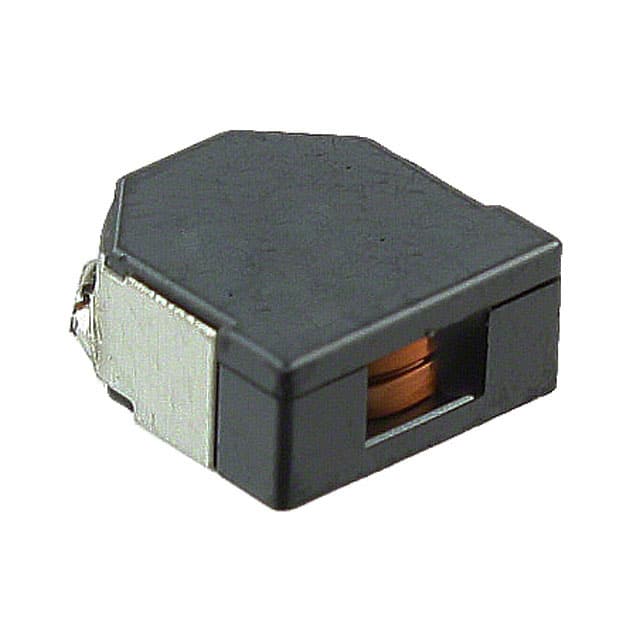

CDEIR8D38FNP-220NCFIXED IND 22UH 2.2A 88.3MOHM SMD |
4,755 |
|
Datasheet | CDEIR8D38F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2.2 A | 3A | Shielded | 88.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDEIR8D38FNP-100NCFIXED IND 10UH 3.4A 43.8MOHM SMD |
3,085 |
|
Datasheet | CDEIR8D38F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.4 A | 4.6A | Shielded | 43.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CDEP85NP-1R1MC-125FIXED IND 1.1UH 17A 3.4 MOHM SMD |
3,785 |
|
Datasheet | CDEP85 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.1 µH | ±20% | 17 A | 7.8A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.217" (5.50mm) |
|
|
CDRH12D77BT150NP-1R0NCFIXED IND 1UH 14A 5.85 MOHM SMD |
3,958 |
|
Datasheet | CDRH12D77B/T150 | Nonstandard | Cut Tape (CT) | Active | - | Ferrite | 1 µH | ±30% | 14 A | 31A | Shielded | 5.85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP85NP-R20MC-50FIXED IND 200NH 18A 2.5 MOHM SMD |
1,177 |
|
Datasheet | CDEP85 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±20% | 18 A | 32A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.217" (5.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
