Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDEP63MENP-100MCFIXED IND 10UH 2.1A 113.8MOHM SM |
2,562 |
|
Datasheet | CDEP | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 10 µH | ±20% | 2.1 A | 4.6A | Shielded | 113.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.25mm x 6.80mm) | 0.118" (3.00mm) |
|

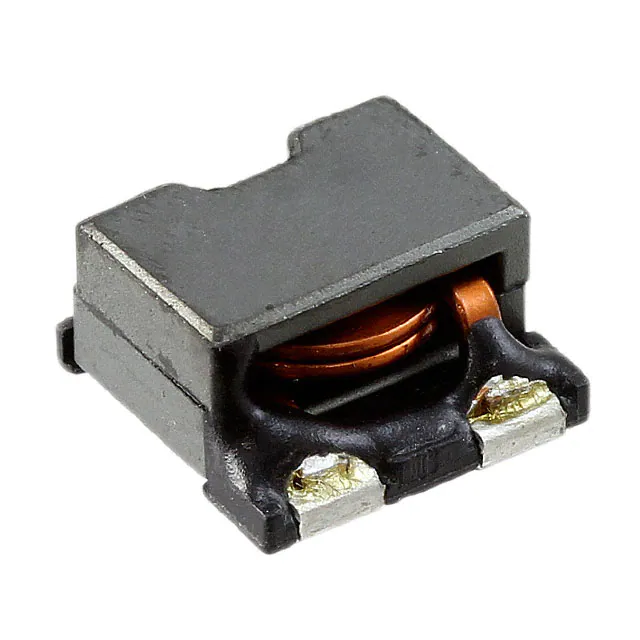

CDEP105NP-0R8MC-88FIXED IND 800NH 17.7A 2.4MOHM SM |
1,816 |
|
Datasheet | CDEP105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 nH | ±20% | 17.7 A | 16A | Shielded | 2.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.220" (5.60mm) |
|
CDEP105NP-1R3MC-50FIXED IND 1.3UH 11.2A 5.3MOHM SM |
3,488 |
|
Datasheet | CDEP105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.3 µH | ±20% | 11.2 A | 16.8A | Shielded | 5.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.220" (5.60mm) |
|
|
RCR1616NP-100MFIXED IND 10UH 7.8A 10.5 MOHM TH |
4,984 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 7.8 A | 9.3A | Shielded | 10.5mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-101KFIXED IND 100UH 2.9A 68 MOHM TH |
4,093 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 2.9 A | 2.7A | Shielded | 68mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-120MFIXED IND 12UH 7.4A 11 MOHM TH |
4,517 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 7.4 A | 8.5A | Shielded | 11mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-150MFIXED IND 15UH 6.2A 14.5 MOHM TH |
1,305 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 6.2 A | 7.1A | Shielded | 14.5mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-180MFIXED IND 18UH 6A 16.5 MOHM TH |
3,976 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 6 A | 6.7A | Shielded | 16.5mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-681KINDUCTOR |
2,966 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1 A | 1A | Shielded | 515mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-330MINDUCTOR |
1,902 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 4.8 A | 5A | Shielded | 27mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
