Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CEI122NP-150MC-HFIXED IND 15UH 2.3A 85 MOHM SMD |
1,739 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 2.3 A | 3.6A | Shielded | 85mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|
|
CEI122NP-220MCFIXED IND 22UH 2.3A 85 MOHM SMD |
2,375 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 2.3 A | 2.3A | Shielded | 85mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|
|
CEI122NP-2R1MCFIXED IND 2.1UH 5.8A 14 MOHM SMD |
1,660 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.1 µH | ±20% | 5.8 A | 8A | Shielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|
|
CEI122NP-3R0MC-HFIXED IND 3UH 4.7A 21.6 MOHM SMD |
4,174 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3 µH | ±20% | 4.7 A | 8.2A | Shielded | 21.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|
|
CEI122NP-4R6MCFIXED IND 4.6UH 4.7A 21.6MOHM SM |
2,889 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.6 µH | ±20% | 4.7 A | 5A | Shielded | 21.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|
|
CEI122NP-6R4MCFIXED IND 6.4UH 4.2A 26.4MOHM SM |
4,925 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 6.4 µH | ±20% | 4.2 A | 4.3A | Shielded | 26.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|
|
CEI122NP-8R2MCFIXED IND 8.2UH 4A 30 MOHM SMD |
2,959 |
|
Datasheet | CEI122 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 8.2 µH | ±20% | 4 A | 3.8A | Shielded | 30mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.118" (3.00mm) |
|

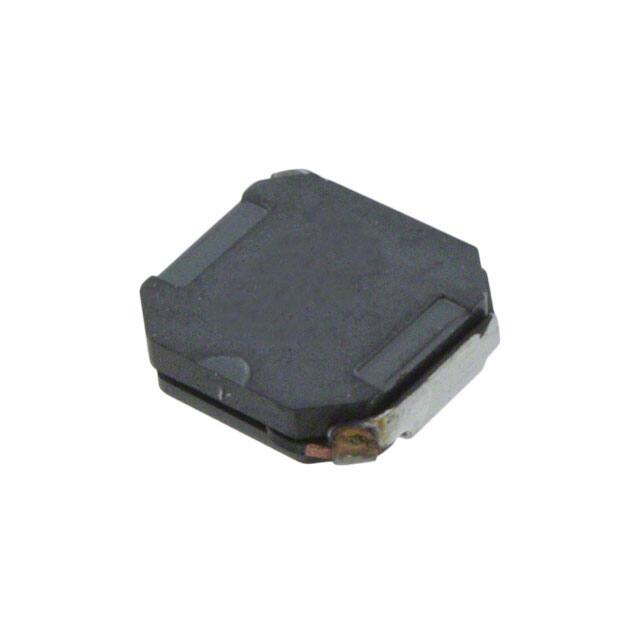

CDPH45D13FHF-100MCFIXED IND 10UH 1.1A 264 MOHM SMD |
3,630 |
|
Datasheet | CDPH | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±20% | 1.1 A | 1.04A | Shielded | 264mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
CDPH45D13FHF-220MCFIXED IND 22UH 660MA 644MOHM SMD |
3,765 |
|
Datasheet | CDPH | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 22 µH | ±20% | 660 mA | 740mA | Shielded | 644mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
|
CDRH125L125NP-5R1NCFIXED IND 5.1UH 6.5A 17.5MOHM SM |
3,350 |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.1 µH | ±30% | 6.5 A | 7.2A | Shielded | 17.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
