Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFAPI-470K-UL-TRFIXED IND 47UH 804MA AXIAL |
1,000 |
|
Datasheet | SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 804 mA | - | Unshielded | 109mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-472K-UL-TRFIXED IND 4.7MH 100MA AXIAL |
1,000 |
|
Datasheet | SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 4.7 mH | ±10% | 100 mA | - | Unshielded | 10.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-332K-UL-TRFIXED IND 3.3MH 125 MA AXIAL |
1,000 |
|
Datasheet | SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 3.3 mH | ±10% | 125 mA | - | Unshielded | 6.56Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
HCTI-100-7.0FIXED IND 100UH 7A 37 MOHM TH |
4,247 |
|
Datasheet | HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
CH-2FIXED IND 70MH 2A 900 MOHM CHASS |
2,088 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 2 A | - | Unshielded | 900mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.374" L x 2.752" W (85.70mm x 69.90mm) | 2.874" (73.00mm) |
|

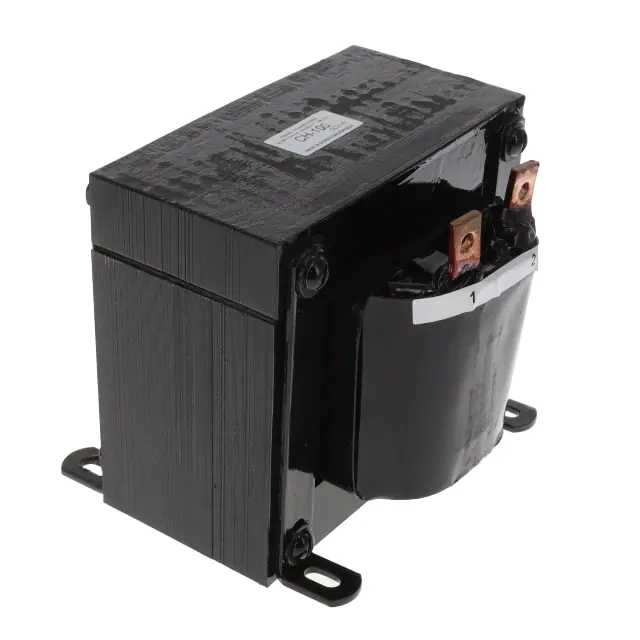

CH-100FIXED IND 500UH 100A 5 MOHM CHAS |
2,327 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 500 µH | - | 100 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | 5.374" (136.50mm) |
|
|
HCTI-560-3.6FIXED IND 560UH 3.6A 140 MOHM TH |
3,400 |
|
Datasheet | HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 560 µH | ±15% | 3.6 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-820-2.6FIXED IND 820UH 2.6A 270 MOHM TH |
1,020 |
|
Datasheet | HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 820 µH | ±15% | 2.6 A | - | Shielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
CH-8FIXED IND 30MH 8A 300 MOHM CHASS |
1,148 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 30 mH | - | 8 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.126" L x 3.626" W (104.80mm x 92.10mm) | 3.500" (88.90mm) |
|
CH-25FIXED IND 5MH 25A 25 MOHM CHASS |
3,488 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 5 mH | - | 25 A | - | Unshielded | 25mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.752" W (133.40mm x 120.70mm) | 4.437" (112.70mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
