Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-RM12-100PWR FACTOR COR RM12 PCB 100W |
630 |
|
Datasheet | SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 450 µH | ±10% | 1.2 A | 5.6A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.575" L x 1.614" W (40.00mm x 41.00mm) | 1.024" (26.00mm) |
|
|
SPFC-RM10-50PWR FACTOR COR RM10 PCB 50W |
630 |
|
Datasheet | SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 750 µH | ±10% | 900 mA | 3.9A | Shielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM14-200PWR FACTOR COR RM14 PCB 200W |
630 |
|
Datasheet | SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | 225 µH | ±10% | 2.4 A | 12.4A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 16 Leads | 1.693" L x 1.890" W (43.00mm x 48.00mm) | 1.260" (32.00mm) |
|
SCRH127-101FIXED IND 100UH 1.8A 220MOHM SMD |
1,400 |
|
Datasheet | SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 1.7A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CH-200FIXED IND 300UH 200A 1 MOHM CHAS |
3,629 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 300 µH | - | 200 A | - | Unshielded | 1mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 7.500" W (190.50mm x 190.50mm) | 6.252" (158.80mm) |
|

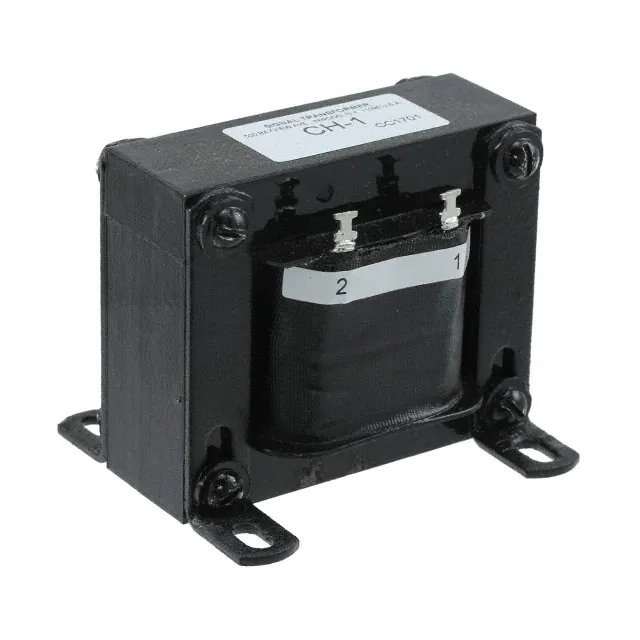

CH-1FIXED IND 100MH 1A 1.5 OHM CHASS |
2,372 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 100 mH | - | 1 A | - | Unshielded | 1.5Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 2.500" W (76.20mm x 63.50mm) | 2.500" (63.50mm) |
|

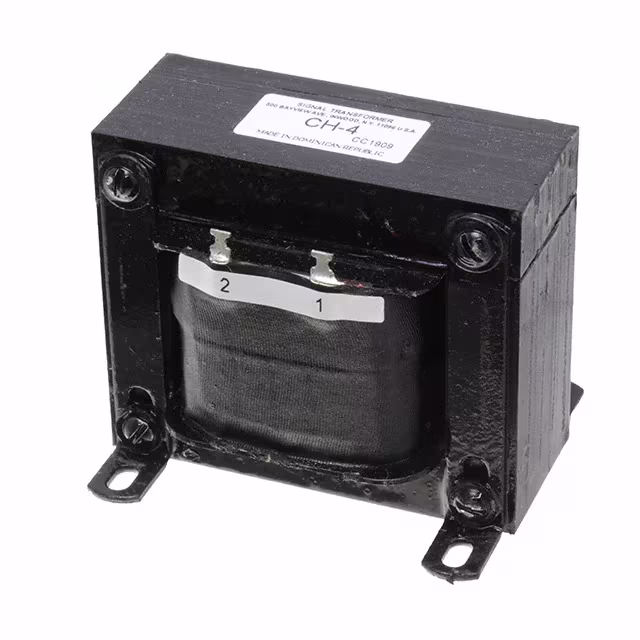

CH-4FIXED IND 70MH 4A 600 MOHM CHASS |
3,359 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 4 A | - | Unshielded | 600mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.126" W (95.30mm x 79.40mm) | 3.252" (82.60mm) |
|
CH-20FIXED IND 7MH 20A 50 MOHM CHASS |
1,567 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 7 mH | - | 20 A | - | Unshielded | 50mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|
CH-6FIXED IND 40MH 6A 400 MOHM CHASS |
2,273 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 40 mH | - | 6 A | - | Unshielded | 400mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.626" W (95.30mm x 92.10mm) | 3.252" (82.60mm) |
|
SCRH125-220FIXED IND 22UH 4A 36 MOHM SMD |
1,223 |
|
Datasheet | SCRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4 A | 2.8A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
