Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRC-1010-103J-ULRADIAL INDUCTOR WITH LEADS, 1000 |
2,198 |
|
Datasheet | DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 140 mA | 170mA | Unshielded | 18Ohm Max | 30 @ 79.6kHz | 380kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
DRC-1010-100J-ULRADIAL INDUCTOR WITH LEADS, 10.0 |
4,683 |
|
Datasheet | DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 3.7 A | 5A | Unshielded | 25mOhm Max | 20 @ 2.52MHz | 16MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
SCIHP0420TB-R10FIXED INDUCTOR 100NH 12A SMD |
4,165 |
|
Datasheet | SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | 12 A | 22A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R22FIXED IND 220NH 9A SMD |
3,623 |
|
Datasheet | SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 9 A | 12.5A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R33FIXED IND 330NH 8.5A SMD |
4,622 |
|
Datasheet | SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 8.5 A | 11A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R47FIXED IND 470NH 7A SMD |
3,241 |
|
Datasheet | SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 7 A | 9.5A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R56FIXED IND 560NH 6.5A SMD |
1,340 |
|
Datasheet | SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 6.5 A | 10A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|

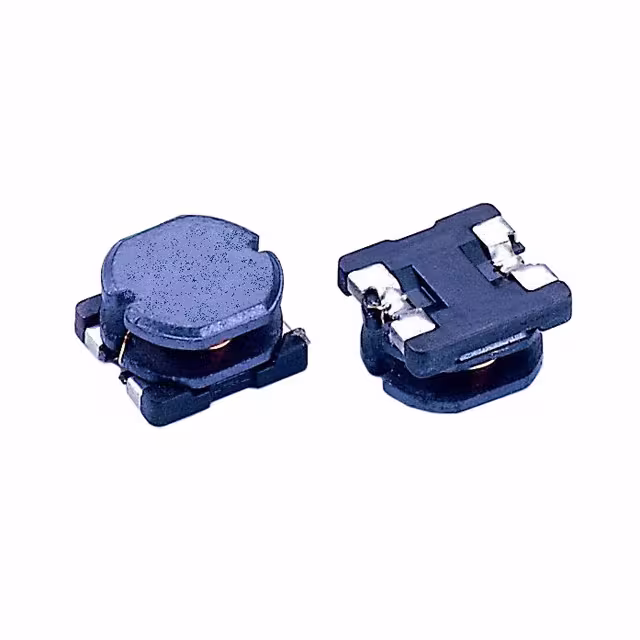

SC73B-100FIXED IND 10UH 2.4A 80 MOHM SMD |
4,294 |
|
Datasheet | SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.4 A | 1.44A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-101FIXED IND 100UH 880MA 500MOHM SM |
2,622 |
|
Datasheet | SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 880 mA | 510mA | Unshielded | 500mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-120FIXED IND 12UH 2.2A 90 MOHM SMD |
3,227 |
|
Datasheet | SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 2.2 A | 1.39A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
