Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC108-391FIXED IND 390UH 800MA 670MOHM SM |
3,030 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 800 mA | 800mA | Unshielded | 670mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-470FIXED IND 47UH 2.6A 110 MOHM SMD |
2,395 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 2A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-471FIXED IND 470UH 750MA 880MOHM SM |
1,884 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 750 mA | 700mA | Unshielded | 880mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-560FIXED IND 56UH 2.4A 120 MOHM SMD |
1,237 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 2.4 A | 1.9A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-680FIXED IND 68UH 2.3A 150 MOHM SMD |
3,533 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.3 A | 1.8A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-681FIXED IND 680UH 720MA 1.18OHM SM |
4,952 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 720 mA | 600mA | Unshielded | 1.18Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-820FIXED IND 82UH 2A 190 MOHM SMD |
1,165 |
|
Datasheet | SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 2 A | 1.6A | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|

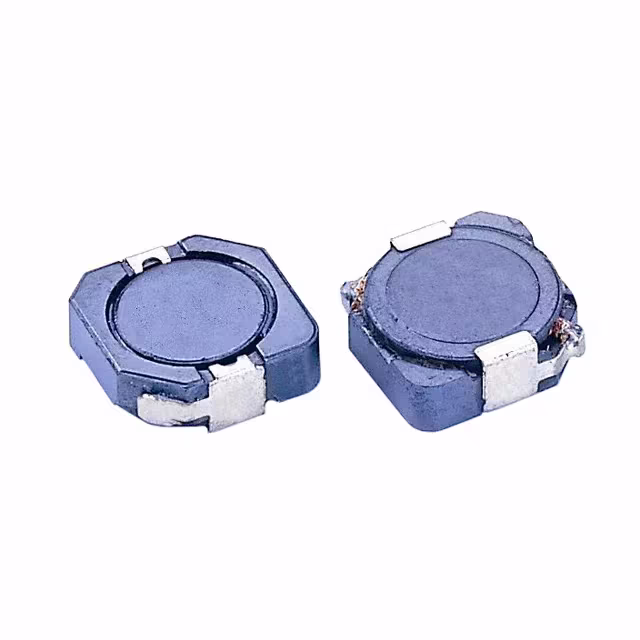

SCRH1035R-100FIXED IND 10UH 3A 69 MOHM SMD |
1,966 |
|
Datasheet | SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 3 A | 3.4A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-101FIXED IND 100UH 1.08A 450MOHM SM |
1,338 |
|
Datasheet | SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.08 A | 1.2A | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-120FIXED IND 12UH 2.85A 82 MOHM SMD |
3,794 |
|
Datasheet | SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 2.85 A | 3.2A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
