Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1A1-303012-100MFIXED IND 10.0UH 550MA 780 MOHM |
2,158 |
|
Datasheet | F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 550 mA | 250mA | Shielded | 780Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1C1-201208-2R2MFIXED IND 2.2UH 1.8A 185 MOHM |
2,567 |
|
Datasheet | F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 1.8 A | 2.3A | Shielded | 185mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
F1A1-383812-3R9NFIXED IND 3.9UH 1.2A 195 MOHM |
2,923 |
|
Datasheet | F1A1-383812 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.9 µH | ±30% | 830 mA | 800mA | Shielded | 256Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
F1A1-383812-1R2NFIXED IND 1.2UH 2.1A 79 MOHM |
2,867 |
|
Datasheet | F1A1-383812 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1.2 µH | ±30% | 1.3 A | 1.4A | Shielded | 81Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
F1A1-383815-220MFIXED IND 22.0UH 550MA 575 MOHM |
4,567 |
|
Datasheet | F1A1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±20% | 550 mA | 370mA | Shielded | 575Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
F1A1-464612-1R0NFIXED IND 1.0UH 1.7A 75 MOHM |
1,235 |
|
Datasheet | F1A1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 µH | ±30% | 1.7 A | 1.9A | Shielded | 75Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1A1-383815-330MFIXED IND 33..0UH 500MA 937 MOHM |
3,472 |
|
Datasheet | F1A1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±20% | 500 mA | 300mA | Shielded | 937Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
F1A1-464612-8R2NFIXED IND 8.2UH 900MA 362 MOHM |
4,658 |
|
Datasheet | F1A1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 8.2 µH | ±30% | 900 mA | 650mA | Shielded | 362Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|

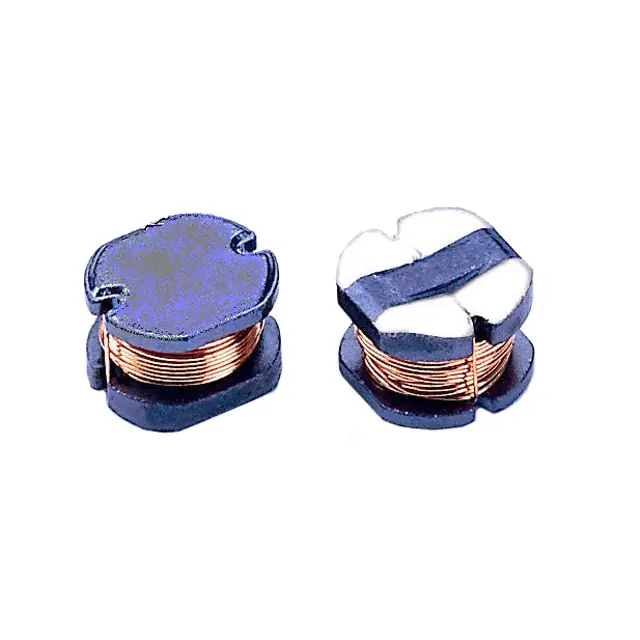

SC105-100FIXED IND 10UH 3.6A 60 MOHM SMD |
4,255 |
|
Datasheet | SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.6 A | 2.6A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-120FIXED IND 12UH 3.3A 70 MOHM SMD |
3,042 |
|
Datasheet | SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 3.3 A | 2.45A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
