Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC780R-104KFIXED IND 100UH 4A 80 MOHM TH |
2,017 |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | 10.9A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
IHLP8787MZER150M51FIXED IND 15UH 23.5A 6.11MOHM SM |
3,066 |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 23.5 A | 24A | Shielded | 6.11mOhm Max | - | 4.71MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHLP8787MZER6R8M5AFIXED IND 6.8UH 36A 3.09MOHM SMD |
4,281 |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 36 A | 36A | Shielded | 3.09mOhm Max | - | 8.03MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER470M5AIHLP-8787MZ-5A 47 20% ER E3 |
3,208 |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 13.5 A | 10A | Shielded | 17.7mOhm Max | - | 2.99MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
.jpg "IHTH1125MZEB470M5A")
|
IHTH1125MZEB470M5AFIXED IND 47UH 14.7A 15.3MOHM TH |
2,195 |
|
Datasheet | IHTH-1125MZ-5A | Radial, Vertical Cylinder | Tube | Active | - | - | 47 µH | ±20% | 14.7 A | 16A | Shielded | 15.3mOhm Max | - | 2.99MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.179" Dia (29.95mm) | 0.500" (12.70mm) |
|
MPXV1D2213L6R8FIXED IND 6.8UH 39A 3.3 MOHM SMD |
1,066 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 39 A | 42A | Shielded | 3.3mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L680FIXED IND 68UH 12.5A 30.8MOHM SM |
2,286 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 12.5 A | 14A | Shielded | 30.8mOhm Max | - | 2.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L101FIXED IND 100UH 10A 47.4MOHM SMD |
4,353 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 µH | ±20% | 10 A | 10.5A | Shielded | 47.4mOhm Max | - | 1.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDM1107BBEV2R0M20FG, IHDM-1107BB-20 2.0 20% |
2,181 |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±20% | 75 A | 234A | Unshielded | 0.65mOhm Max | - | 82MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV4R3M30FG, IHDM-1107BB-30 4.3 20% |
4,845 |
|
Datasheet | IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±20% | 64 A | 105A | Unshielded | 0.97mOhm Max | - | 44MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV2R7M30FG, IHDM-1107BB-30 2.7 20% |
4,682 |
|
Datasheet | IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 2.7 µH | ±20% | 72 A | 127A | Unshielded | 0.65mOhm Max | - | 62MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
1140-222K-RCFIXED IND 2.2MH 2.4A 494 MOHM TH |
3,877 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 2.4 A | 4.4A | Unshielded | 494mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-123K-RCFIXED IND 12MH 900MA 3.04 OHM TH |
4,340 |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 900 mA | 1.9A | Unshielded | 3.04Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
7443783533470FIXED IND 47UH 19.3A 12.98 MOHM |
1,069 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 19.3 A | 32.3A | Shielded | 12.98mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
5722-RCFIXED IND 900UH 3.75A 175MOHM TH |
3,326 |
|
Datasheet | 5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 900 µH | ±15% | 3.75 A | - | Unshielded | 175mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
|
MPXV1D2213LR68FIXED IND 680NH 78A 0.83MOHM SMD |
4,422 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 78 A | 115A | Shielded | 0.83mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
7443763540150FIXED IND 15UH 45.3A 2.16MOHM TH |
3,135 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±20% | 45.3 A | 51.6A | Shielded | 2.16mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
SHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
1,408 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 219 µH | ±20% | 15 A | - | Unshielded | 19.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.988" Dia (50.50mm) | 1.988" (50.50mm) |
|
156CFIXED IND 150H 8MA 3.7 KOHM CHAS |
2,993 |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 150 H | ±15% | 8 mA | - | Unshielded | 3.7kOhm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|

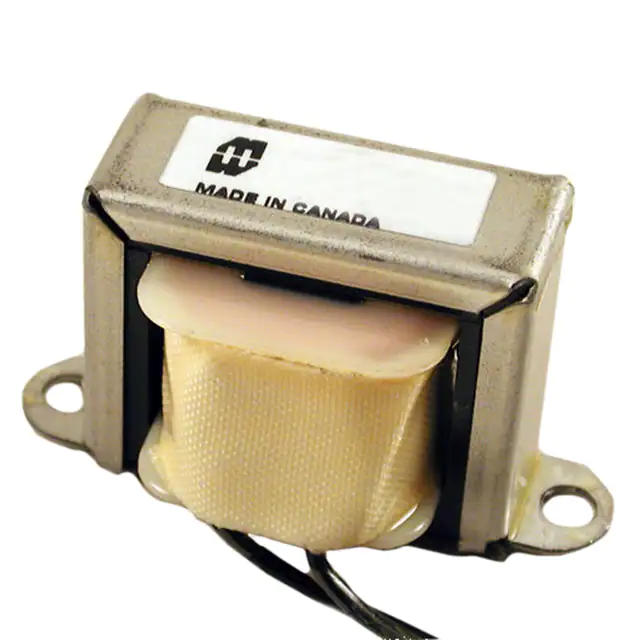

153HFIXED IND 2.2H 50MA 305 OHM CHAS |
1,114 |
|
Datasheet | 153 | Nonstandard | Bulk | Active | - | - | 2.2 H | ±15% | 50 mA | - | Unshielded | 305Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
