Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

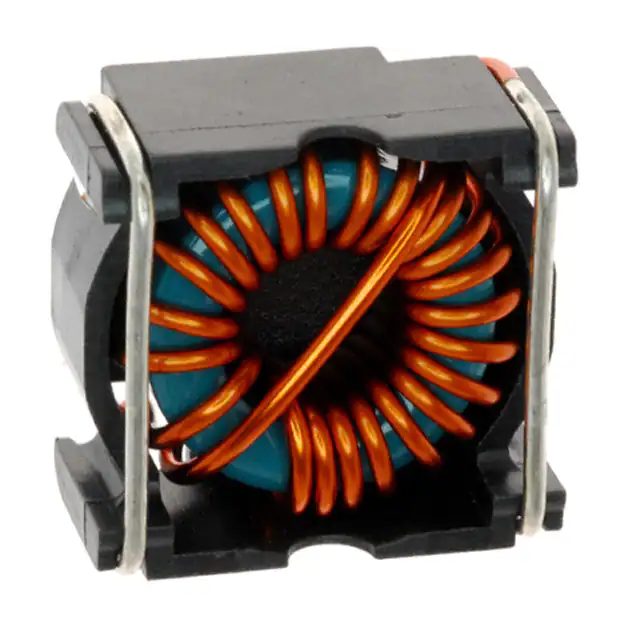

PE-53663NLTFIXED IND 9.3UH 7.2A 18.7MOHM SM |
1,054 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.3 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PA2729.502NLFIXED IND 4.9UH 16.4A 3.4MOHM SM |
3,134 |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 4.9 µH | ±15% | 16.4 A | 20.9A | Shielded | 3.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
P0147NLFIXED IND 56UH 1.65A 139MOHM SMD |
1,397 |
|
Datasheet | Bobcat | Nonstandard | Tube | Active | Toroidal | - | 56 µH | - | 1.65 A | - | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
PE-52651NLFIXED IND 1MH 500MA 2.6 OHM TH |
2,903 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 1 mH | ±20% | 500 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
P0850SNLFIXED IND 23UH 5A 13 MOHM SMD |
4,417 |
|
Datasheet | Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 23 µH | ±20% | 5 A | - | Shielded | 13mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PE-54042NLFIXED IND 167UH 2.5A 140 MOHM TH |
2,719 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 167 µH | ±20% | 2.5 A | - | Shielded | 140mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
BWVT004040122R2M00INDUCTOR POWER |
1,000 |
|
Datasheet | BWVT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.07 A | 1.71A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|
BWVS004040263R3M00INDUCTOR POWER |
465 |
|
Datasheet | BWVS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 2.25 A | 2.25A | Shielded | 45mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
BWVS00606045221M00INDUCTOR POWER |
973 |
|
Datasheet | BWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 340 mA | 730mA | Shielded | 1.3Ohm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
BWVC006060454R7M00INDUCTOR POWER |
1,950 |
|
Datasheet | BWVC | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.6 A | 6.12A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
