Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2204.332NLTFIXED IND 3.3UH 8A 20.8MOHM SMD |
1,580 |
|
Datasheet | PM2204.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 8 A | 12.2A | Unshielded | 20.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.122" (3.10mm) |
|
|
PM2204.452NLTFIXED IND 4.5UH 7A 25.3MOHM SMD |
1,320 |
|
Datasheet | PM2204.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.5 µH | ±20% | 7 A | 10A | Unshielded | 25.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.122" (3.10mm) |
|
|
PM2204.331NLTFIXED IND 330NH 25A 2.5MOHM SMD |
1,080 |
|
Datasheet | PM2204.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 25 A | 32A | Unshielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.122" (3.10mm) |
|
PG0085.103NLFIXED IND 10UH 550MA 182MOHM SMD |
882 |
|
Datasheet | PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | 10 µH | ±20% | 550 mA | 550mA | Shielded | 182mOhm Max | - | 29MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.071" (1.80mm) |
|
|
PM2205.182NLTFIXED IND 1.8UH 16A 7.1MOHM SMD |
1,391 |
|
Datasheet | PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 16 A | 18.5A | Shielded | 7.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PE-53663NLFIXED IND 9.3UH 7.2A 18.7MOHM SM |
2,892 |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9.3 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PM2206.331NLTFIXED IND 330NH 19A 4.8 MOHM SMD |
1,976 |
|
Datasheet | PM2206.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 19 A | 34A | Unshielded | 4.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
PM2207.102NLTFIXED IND 1UH 21.8A 4.55MOHM SMD |
1,318 |
|
Datasheet | PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 21.8 A | 30A | Unshielded | 4.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|

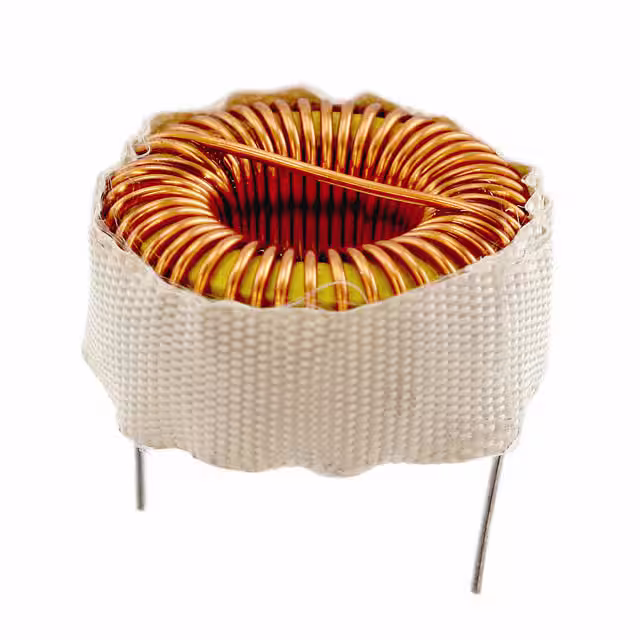

PE-92405NLFIXED IND 145UH 3A 87 MOHM TH |
3,204 |
|
Datasheet | - | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
PA4320.153NLTFIXED IND 15UH 7A 22 MOHM SMD |
1,048 |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 7 A | 8.3A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
