Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3288.301HLFIXED IND 300NH 64A 0.29MOHM SMD |
3,448 |
|
Datasheet | PA3288.XXXHL | Nonstandard | Tray | Active | - | - | 300 nH | ±15% | 64 A | 34A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
PA3790.181HLFIXED IND 180NH 57A 0.29MOHM SMD |
2,850 |
|
Datasheet | PA3790.XXXHL | Nonstandard | Tray | Active | - | - | 180 nH | ±15% | 57 A | 84A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|
PF0560.522NLFIXED IND 5.2UH 5.4A 22 MOHM SMD |
2,907 |
|
Datasheet | PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 5.2 µH | ±30% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
PG0642.102NLFIXED IND 1UH 14.5A 5.8 MOHM SMD |
4,986 |
|
Datasheet | PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 14.5 A | 22A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
|
PG0642.222NLFIXED IND 2.2UH 10A 12.7MOHM SMD |
3,211 |
|
Datasheet | PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 10 A | 14A | Shielded | 12.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
|
PG0642.401NLFIXED IND 400NH 20A 3.3 MOHM SMD |
4,094 |
|
Datasheet | PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±20% | 20 A | 32A | Shielded | 3.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|

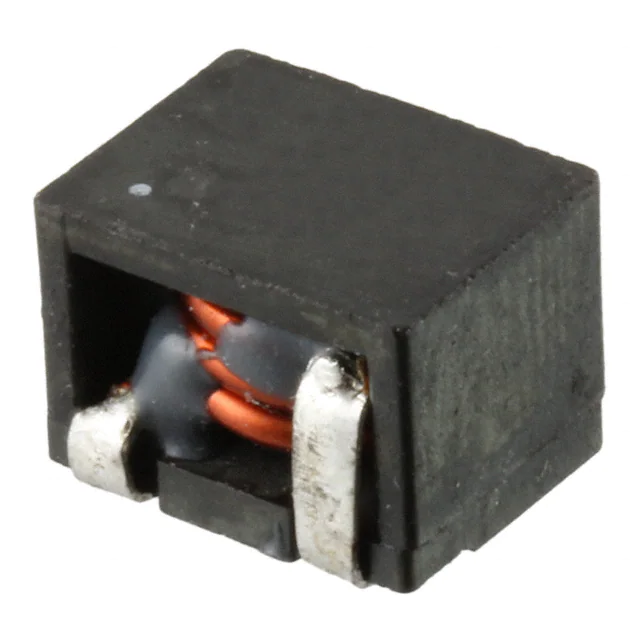

PG0702.102NLFIXED IND 1UH 26A 1.76 MOHM SMD |
1,838 |
|
Datasheet | PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 26 A | 26A | Shielded | 1.76mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
PG1083.682NLFIXED IND 6.8UH 22A 3.8 MOHM SMD |
3,911 |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 22 A | 20A | Unshielded | 3.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
PG0255.401NLFIXED IND 400NH 29A 1.15MOHM SMD |
1,039 |
|
Datasheet | PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±15% | 29 A | 29A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PA0513.261NLFIXED IND 260NH 45A 0.32MOHM SMD |
4,464 |
|
Datasheet | PA0513NL | Nonstandard | Tray | Obsolete | - | - | 260 nH | ±20% | 45 A | 60A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
