Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0849SNLTFIXED IND 33UH 5A 19 MOHM SMD |
2,580 |
|
Datasheet | Bigfoot | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 19mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PA1294.152NLTFIXED IND 1.5UH 21A 0.48MOHM SMD |
3,286 |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.5 µH | ±15% | 21 A | 24A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.450NLTFIXED IND 450NH 73A 0.48MOHM SMD |
4,536 |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 450 nH | ±15% | 73 A | 95A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.112NLTFIXED IND 1.1UH 30A 0.48MOHM SMD |
3,823 |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.1 µH | ±15% | 30 A | 35A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|

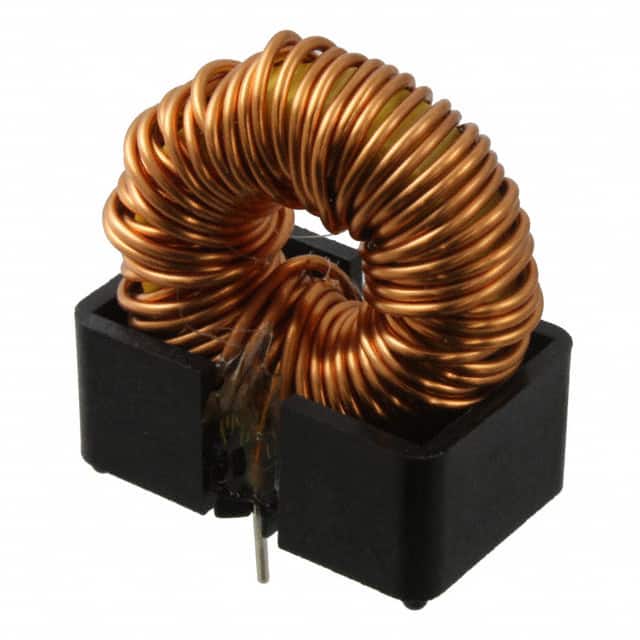

PE-54043NLFIXED IND 121UH 3A 90 MOHM TH |
4,017 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 121 µH | ±20% | 3 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
PE-92416NLFIXED IND 55UH 7A 17 MOHM TH |
2,569 |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 7 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|
PG0006.552NLTFIXED IND 5.5UH 8A 12.4 MOHM SMD |
3,541 |
|
Datasheet | PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.5 µH | ±20% | 8 A | 8A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
|
|
PA1393.102NLTFIXED IND 1UH 42A 1.43 MOHM SMD |
3,948 |
|
Datasheet | PA1393NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1 µH | ±15% | 42 A | 68A | Shielded | 1.43mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PM2247.472NLTFIXED IND 4.7UH 30A 3.8MOHM SMD |
1,853 |
|
Datasheet | PM2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 30 A | 39A | Unshielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
PM2247.822NLTFIXED IND 8.2UH 25A 7.2MOHM SMD |
1,840 |
|
Datasheet | PM2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 25 A | 28A | Unshielded | 7.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
