Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0648.214NLTFIXED IND 214UH 1A 557 MOHM SMD |
3,981 |
|
Datasheet | P0648 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 214 µH | ±20% | 1 A | 1.1A | Unshielded | 557mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.515" L x 0.515" W (13.08mm x 13.08mm) | 0.197" (5.00mm) |
|
|
P0648.682NLTFIXED IND 6.8UH 5.1A 22 MOHM SMD |
3,781 |
|
Datasheet | P0648 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 5.1 A | 6.6A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.515" L x 0.515" W (13.08mm x 13.08mm) | 0.197" (5.00mm) |
|
|
P0648.102NLTFIXED IND 1.05UH 12.2A 5.5 MOHM |
1,963 |
|
Datasheet | P0648 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.05 µH | ±20% | 12.2 A | 17.7A | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.515" L x 0.515" W (13.08mm x 13.08mm) | 0.197" (5.00mm) |
|
|
P0648.104NLTFIXED IND 100UH 1.4A 262MOHM SMD |
1,472 |
|
Datasheet | P0648 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.4 A | 1.7A | Unshielded | 262mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.515" L x 0.515" W (13.08mm x 13.08mm) | 0.197" (5.00mm) |
|
|
P0648.103NLTFIXED IND 10.2UH 4.3A 33MOHM SMD |
4,473 |
|
Datasheet | P0648 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10.2 µH | ±20% | 4.3 A | 5.4A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.515" L x 0.515" W (13.08mm x 13.08mm) | 0.197" (5.00mm) |
|
|
P0648.223NLTFIXED IND 22UH 3.3A 61 MOHM SMD |
4,949 |
|
Datasheet | P0648 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 3.3 A | 3.7A | Unshielded | 61mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.515" L x 0.515" W (13.08mm x 13.08mm) | 0.197" (5.00mm) |
|

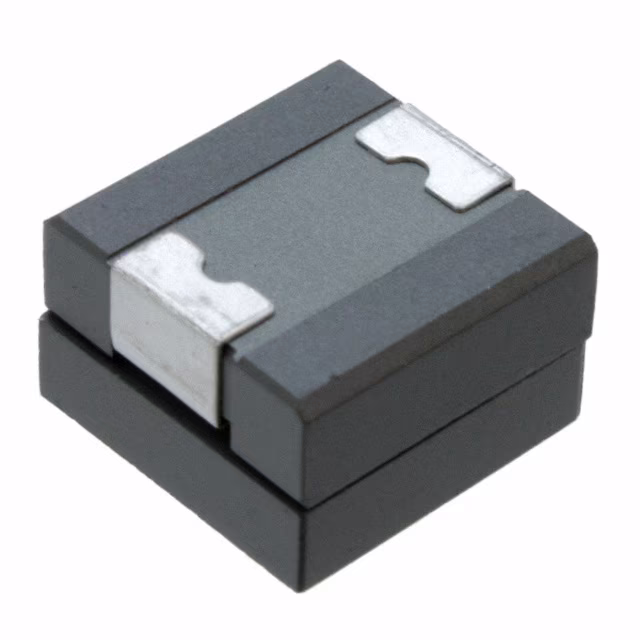

PA1513.211NLTFIXED IND 210NH 45A 0.53MOHM SMD |
2,890 |
|
Datasheet | PA1513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 210 nH | ±20% | 45 A | 71A | Shielded | 0.53mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
PA1513.321NLTFIXED IND 320NH 41A 0.53MOHM SMD |
4,797 |
|
Datasheet | PA1513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±20% | 41 A | 50A | Shielded | 0.53mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
PG0255.601NLTFIXED IND 600NH 27A 1.87MOHM SMD |
2,755 |
|
Datasheet | PG0255NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 nH | ±15% | 27 A | 28A | Shielded | 1.87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PG0255.401NLTFIXED IND 400NH 29A 1.15MOHM SMD |
2,802 |
|
Datasheet | PG0255NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±15% | 29 A | 29A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
