Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

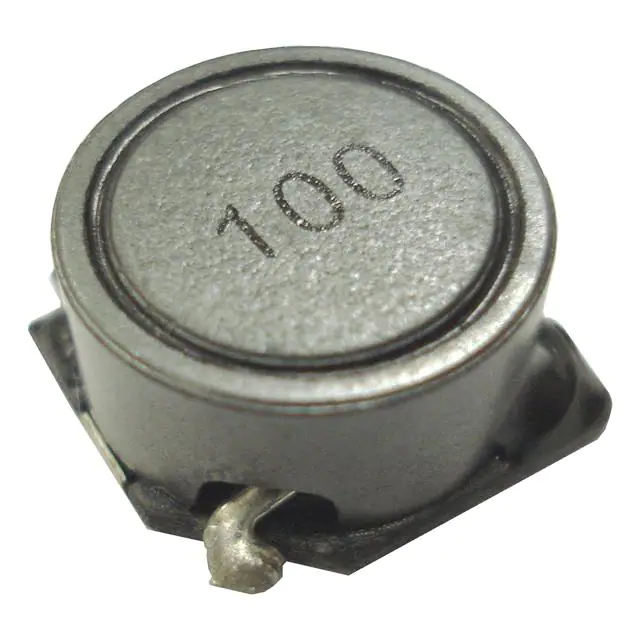

BPSF00070745100M00INDUCTOR POWER |
2,965 |
|
Datasheet | BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.78 A | 1.3A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
PA5402.682NLTFIXED IND 6.8UH 2.1A 172MOHM SMD |
3,000 |
|
Datasheet | PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
PA4338.682NLTFIXED IND 6.8UH 3.6A 24 MOHM SMD |
2,910 |
|
Datasheet | PA4338.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±20% | 3.6 A | 4.55A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
BPDN000404234R7Y00INDUCTOR POWER |
5,000 |
|
Datasheet | BPDx | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.9 A | 1.3A | Shielded | 68.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.091" (2.30mm) |
|
BPSC000303162R2T00FIXED IND 2.2UH 1.6A 94 MOHM SMD |
2,988 |
|
Datasheet | BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.6 A | 1.2A | Shielded | 94mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.061" (1.55mm) |
|
|
BPDN00040430100T00INDUCTOR POWER |
2,000 |
|
Datasheet | BPDx | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.18 A | 1.05A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
|
BPDN000404304R7T00INDUCTOR POWER |
1,995 |
|
Datasheet | BPDx | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.62 A | 1.65A | Shielded | 88.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
AMRU000606304R7MA1INDUCTOR POWER |
3,945 |
|
Datasheet | AMRx | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 5.5 A | 8A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
AMRU000606302R2MA1INDUCTOR POWER |
3,851 |
|
Datasheet | AMRx | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 8 A | 10A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
AMRU000606301R0MA1INDUCTOR POWER |
3,835 |
|
Datasheet | AMRx | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 10 A | 18A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
