Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5404.152NLTFIXED IND 1.5UH 12A 9 MOHM SMD |
1,754 |
|
Datasheet | PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 12 A | 16.5A | Shielded | 9mOhm Max | - | 43MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
P0770.153NLTFIXED IND 15UH 900MA 230MOHM SMD |
4,658 |
|
Datasheet | P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 900 mA | 900mA | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA4390.151HLTFIXED IND 150NH 68A 0.185MOHM SM |
4,128 |
|
Datasheet | PA4390.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 68 A | 73A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
PA4990.101HLTFIXED IND 100NH 77A 0.125MOHM SM |
3,647 |
|
Datasheet | PA4990 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 77 A | 125A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PA4990.331HLTFIXED IND 330NH 32A 0.125MOHM SM |
5,130 |
|
Datasheet | PA4990 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 32 A | 40A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
PA4342.472NLTFIXED IND 4.7UH 10A 15.5MOHM SMD |
116,073 |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 10 A | 17A | Shielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
P0751.153NLTFIXED IND 15UH 3A 55 MOHM SMD |
43,730 |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3 A | 3A | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
P0751.223NLTFIXED IND 22UH 2.6A 114 MOHM SMD |
9,176 |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.6A | Unshielded | 114mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
PA4342.153NLTFIXED IND 15UH 6.25A 45 MOHM SMD |
3,946 |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6.25 A | 10A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

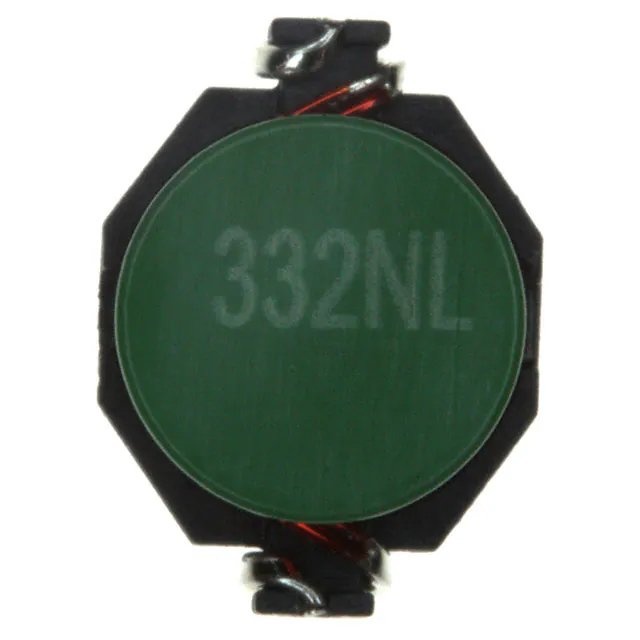

P0751.332NLTFIXED IND 3.3UH 5.4A 18 MOHM SMD |
3,036 |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.4 A | 6.4A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
