Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-2515-100M-T2FIXED IND 10UH 750MA 445MOHM SMD |
3,804 |
|
Datasheet | ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 750 mA | 800mA | Shielded | 445mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
AISC-1206-R27J-TFIXED IND 270NH 630MA 560MOHM SM |
2,188 |
|
Datasheet | AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 630 mA | - | Unshielded | 560mOhm Max | 50 @ 300MHz | 730MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|
|
AISC-1210-R15J-TFIXED IND 150NH 750MA 250MOHM SM |
2,328 |
|
Datasheet | AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 750 mA | - | Unshielded | 250mOhm Max | 60 @ 300MHz | 700MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|
|
AISC-1210-R33J-TFIXED IND 330NH 590MA 580MOHM SM |
4,075 |
|
Datasheet | AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 590 mA | - | Unshielded | 580mOhm Max | 45 @ 150MHz | 580MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|

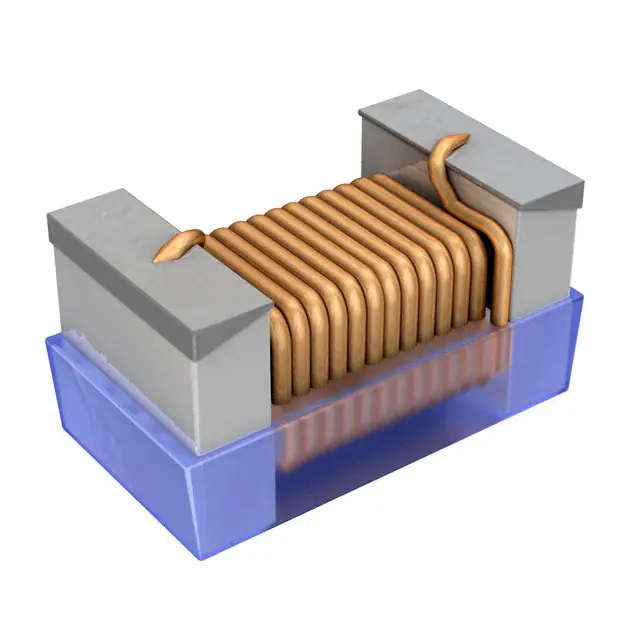

AISC-0402F-33NJ-TFIXED IND 33NH 1.3A 65 MOHM SMD |
3,376 |
|
Datasheet | AISC-0402F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 1.3 A | - | Unshielded | 65mOhm Max | - | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-96NJ-TFIXED IND 96NH 730MA 160MOHM SMD |
2,990 |
|
Datasheet | AISC-0402F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 96 nH | ±5% | 730 mA | - | Unshielded | 160mOhm Max | - | 1.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-R16J-TFIXED IND 160NH 480MA 330MOHM SM |
3,820 |
|
Datasheet | AISC-0402F | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±5% | 480 mA | - | Unshielded | 330mOhm Max | - | 900MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
ASPI-0418FS-151M-T3FIXED IND 150UH 320MA 2.4OHM SMD |
2,588 |
|
Datasheet | ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 280 mA | 410mA | Shielded | 3.12Ohm Max | - | 5.1MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
ASPI-0425-101M-T3FIXED IND 100UH 300MA 1.2OHM SMD |
4,450 |
|
Datasheet | ASPI-0425 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 100 µH | ±20% | 300 mA | 300mA | Shielded | 1.2Ohm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
ASPI-0630LR-R33M-T15IND 0.33UH 21A 3.5MOHM |
4,203 |
|
Datasheet | ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 330 nH | ±20% | 21 A | 23A | Unshielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
