Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMELA2010S-R47MTFIXED IND 470NH 4.1A 29MOHM SMD |
12,000 |
|
Datasheet | AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4.1 A | 5.5A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ASPI-U252010-R47M-TFIXED IND 470NH SMD |
2,230 |
|
Datasheet | ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
AISC-0402F-70NJ-TFIXED IND 70NH 820MA 120MOHM SMD |
7,287 |
|
Datasheet | AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 70 nH | ±5% | 820 mA | - | Unshielded | 120mOhm Max | - | 1.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AMELA2010S-R22MTFIXED IND 220NH 6.5A 17MOHM SMD |
2,730 |
|
Datasheet | AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 6.5 A | 8.5A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ATFC-0603-27N-FTFIXED IND 27NH 250MA 2.35OHM SMD |
1,575 |
|
Datasheet | ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | 27 nH | ±1% | 250 mA | - | Unshielded | 2.35Ohm Max | 15 @ 300MHz | 2GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

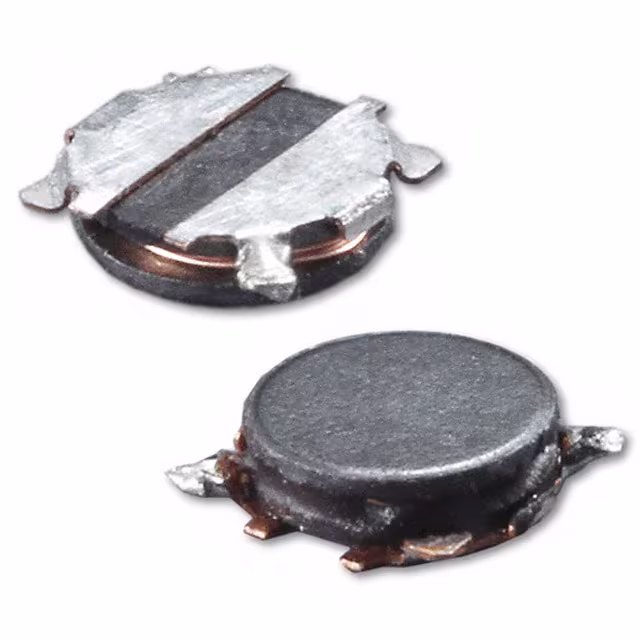

ASPI-0309-100M-T4FIXED IND 10UH 550MA 640MOHM SMD |
1,534 |
|
Datasheet | ASPI-0309 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 550 mA | 430mA | Unshielded | 640mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.90mm) |
|
ASPIAIG-S4035-3R3M-TFIXED IND 3.3UH 2.9A 58MOHM SMD |
1,761 |
|
Datasheet | ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2.9 A | 3.8A | Shielded | 58mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
|
|
ASPIAIG-S4035-1R0M-TFIXED IND 1UH 4.5A 24 MOHM SMD |
4,961 |
|
Datasheet | ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 4.5 A | 6.9A | Shielded | 24mOhm Max | - | 121MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
|
|
ASPIAIG-S4035-6R8M-TFIXED IND 6.8UH 2.2A 101MOHM SMD |
2,520 |
|
Datasheet | ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.2 A | 2.8A | Shielded | 101mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
|
|
ASPIAIG-S4035-4R7M-TFIXED IND 4.7UH 2.45A 82MOHM SMD |
4,720 |
|
Datasheet | ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2.45 A | 3.2A | Shielded | 82mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
