Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATL-1Z120705SR15MTIND TLVR 150NH 45A 0.25MOHM |
700 |
|
Datasheet | ATL-1Z120705S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 50 A | 45A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.276" W (12.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|
ATL-1Z120705SR12MTIND TLVR 120NH 50A 0.25MOHM |
700 |
|
Datasheet | ATL-1Z120705S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Molded | - | 120 nH | ±20% | 50 A | 55A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.276" W (12.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|
ATL-1Z120705SR10MTIND TLVR 100NH 50A 0.25MOHM |
700 |
|
Datasheet | ATL-1Z120705S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 50 A | 75A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.276" W (12.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|
ASPIAIG-Q1030-1R0M-TFIXED IND 1UH 23A 4.95 MOHM SMD |
2,000 |
|
Datasheet | ASPIAIG-Q1030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 23 A | 30A | Shielded | 4.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
ASPI-F1060-4R7M-TIND 4.7UH 14A 10.72M |
1,000 |
|
Datasheet | ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 14 A | 22A | Shielded | 10.72mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
|
ASPI-F1060-1R0M-TIND 1UH 28.5A 2.32M |
990 |
|
Datasheet | ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 28.5 A | 44A | Shielded | 2.32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
|
ASPI-F1060-2R2M-TIND 2.2UH 20A 4.84M |
837 |
|
Datasheet | ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 20 A | 30A | Shielded | 4.84mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |

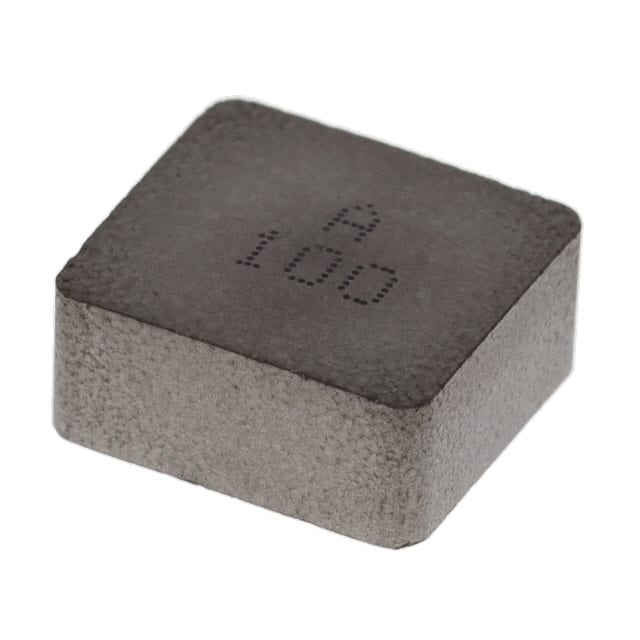

.jpg "ASPI-F1060-100M-T")
|
ASPI-F1060-100M-TIND 10UH 9A 18.2M |
816 |
|
Datasheet | ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 9 A | 13A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
AMDLA1707S-4R7MTFIXED IND 4.7UH 28A 4.5MOHM SMD |
220 |
|
Datasheet | AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 28 A | 29A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707S-1R0MTFIXED IND 1UH 46A 1.3 MOHM SMD |
200 |
|
Datasheet | AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 46 A | 50A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
