Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
159ZLFIXED IND 2.5MH 10A 44 MOHM CHAS |
1,135 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 10 A | - | Unshielded | 44mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|

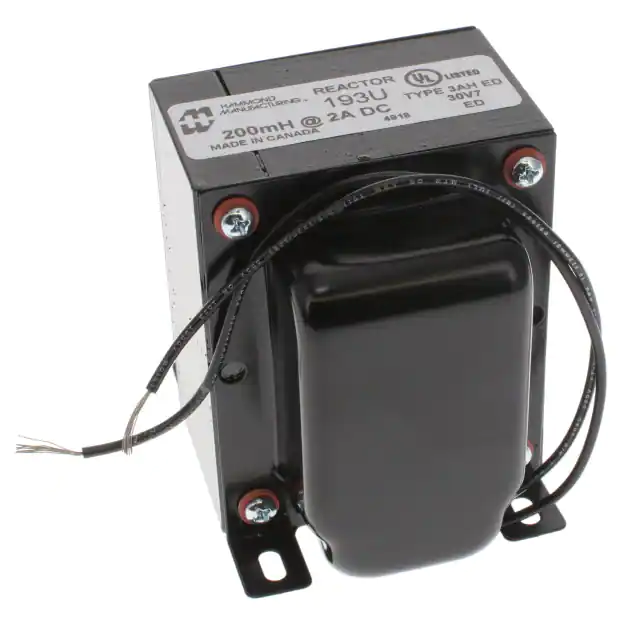

193UFIXED IND 200MH 2A 1.7 OHM CHASS |
3,758 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 200 mH | ±15% | 2 A | - | Unshielded | 1.7Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.250" L x 3.130" W (107.95mm x 79.50mm) | 3.810" (96.77mm) |
|
195J10FIXED IND 10MH 10A 70 MOHM CHASS |
2,266 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 10 A | - | Unshielded | 70mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.350" W (95.25mm x 110.49mm) | 3.130" (79.50mm) |
|
|
195G20FIXED IND 5MH 20A 25 MOHM CHASS |
1,899 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 20 A | - | Unshielded | 25mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 4.750" W (114.30mm x 120.65mm) | 3.750" (95.25mm) |
|
|
195E30FIXED IND 2.5MH 30A 13 MOHM CHAS |
3,668 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 30 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
|
195C50FIXED IND 1MH 50A 5MOHM CHAS MNT |
2,090 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 50 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
|
195J20FIXED IND 10MH 20A 45 MOHM CHASS |
3,812 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 20 A | - | Unshielded | 45mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
C-80UFIXED IND 24MH 20A 25 MOHM CHASS |
3,917 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 24 mH | -20%, +50% | 20 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.562" L x 5.500" W (115.87mm x 139.70mm) | 5.312" (134.92mm) |
|
|
195E50FIXED IND 2.5MH 50A 8 MOHM CHASS |
3,832 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 50 A | - | Unshielded | 8mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 6.000" W (133.35mm x 152.40mm) | 4.470" (113.54mm) |
|
|
195C100FIXED IND 1MH 100A 3.6 MOHM CHAS |
2,326 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 100 A | - | Unshielded | 3.6mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195T10FIXED IND 100MH 10A 420 MOHM |
3,584 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 100 mH | ±15% | 10 A | - | Unshielded | 420mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 6.000" W (190.50mm x 152.40mm) | 6.250" (158.75mm) |
|
|
195B150FIXED IND 500UH 150A 1.8 MOHM |
1,171 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 500 µH | ±15% | 150 A | - | Unshielded | 1.8mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195G50FIXED IND 5MH 50A 21 MOHM CHASS |
3,060 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 50 A | - | Unshielded | 21mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 6.500" W (190.50mm x 165.10mm) | 6.250" (158.75mm) |
|
CH-200FIXED IND 300UH 200A 1 MOHM CHAS |
3,629 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 300 µH | - | 200 A | - | Unshielded | 1mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 7.500" W (190.50mm x 190.50mm) | 6.252" (158.80mm) |
|
|
195R20FIXED IND 50MH 20A 130 MOHM CHAS |
3,165 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 50 mH | ±15% | 20 A | - | Unshielded | 130mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 8.250" W (228.60mm x 209.55mm) | 7.500" (190.50mm) |
.jpg "LQG15HN8N2J02D")
|
LQG15HN8N2J02DFIXED IND 8.2NH 500MA 0.25OHM SM |
895 |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 8.2 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HN5N6C02DFIXED IND 5.6NH 600MA 0.18OHM SM |
839 |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 5.6 nH | ±0.2nH | 600 mA | - | Unshielded | 180mOhm Max | - | 5.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
WLPH201610M2R2PPPOWER CHOKE MOLDED 2.2UH 1.9A |
559 |
|
Datasheet | PH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.5 A | 1.71A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQG15HN18NJ02DFIXED IND 18NH 350MA 0.51OHM SMD |
322 |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 18 nH | ±5% | 350 mA | - | Unshielded | 510mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HS2N2B02DFIXED IND 2.2NH 900MA 0.09OHM SM |
291 |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.2 nH | ±0.1nH | 900 mA | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
